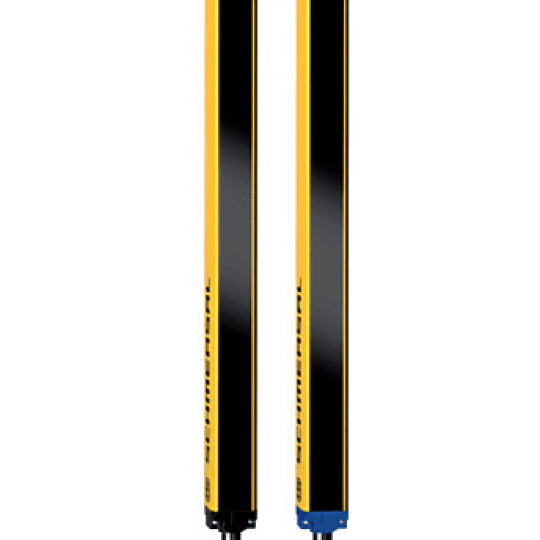

Cảm biến ánh sáng an toàn Schmersal SLC440COM-ER-0730-35 Item number: 103004004

Safety type 4 in accordance with IEC 61496-1

Status and diagnostics via App with bluetooth

Automatic start or restart interlock

active integrated set-up tool

Process safety with highest availability

User-friendly parameter setting, no tools required

optional degree of protection IP69 with protective enclosure (accessories)

Certificates

TÜV

cULus

EAC

Restart interlock (manual reset)	Yes
Integral System Diagnostics, status	Yes
Integral System Diagnostics	Yes
Number of beams	25
Number of fail-safe digital outputs	2

Standards

EN ISO 13849-1

EN 62061

Performance level, up to

Control category to EN13849

PFH-value

8.05 x 10⁻⁹ /h

Safety Integrity Level (SIL), suitable for applications in

Mission Time

20 Year(s)

Safety type in accordance with IEC 61496-1

Detection ability for test bodies at v = 1.6 m/s	35 mm
Height of the protection field	730 mm
Range, protection field, minimum	300 mm
Range, protection field, maximum	7,000 mm
Wave length of the sensor	880 nm

Terminal Connector	Connector
Terminal connector, Recipient	Connector plug M12, 5-pole
Terminal, Connector, Transmitter	Connector plug M12, 4-pole
Length of the connectable cable, maximum	100 m

Degree of protection	IP67 to EN 60529
Ambient temperature, minimum	-10 °C
Ambient temperature, maximum	+50 °C
Storage and transport temperature, minimum	-25 °C
Storage and transport temperature, maximum	+70 °C
Protection rating	III

Voltage type	DC (direct current)
Switching voltage OSSD, HIGH signal	24 V
Electrical power consumption of the receiver, maximum	10 W
Electrical power consumption of the transmitter, maximum	5 W
