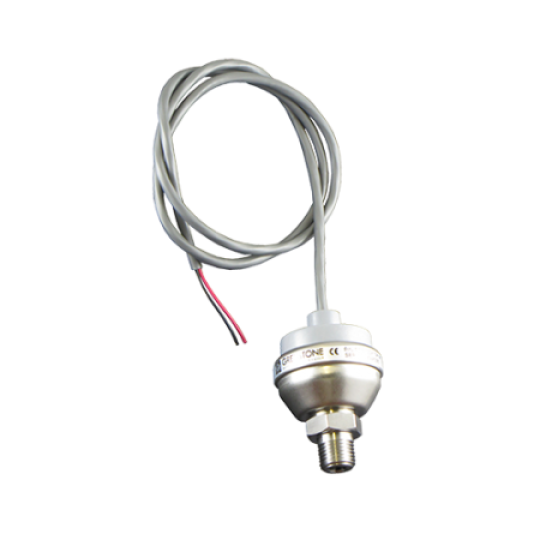

The PGS100 is a compact gauge pressure transmitter complete with a 2 wire 4-20mA output, various pressure ranges, 1/4” NPT connection and 2 foot cable for electrical termination.

1/4” NPT
NIST traceable calibration
Weather resistant for harsh environments
Fast response time
Capacitance sensing element
Ranges -14.7 through 10,000 PSIG (-101.4 through 68947.6 kPa)
Accuracy to ±0.25% FSO
DC inputs, current output
Compensated temperature range: -20˚C to 80˚C  (-4˚F to 176˚F)
Operating temperature range: -40˚C to 85˚C  (-40˚F to 185˚F)
17-4PH Stainless Steel has excellent corrosion resistance (comparable to grade 304 stainless)

Cảm biến áp suất Greystone  PGS100A9A1A Gauge pressure transducer, 24 Vdc loop powered 4-20mA output, 0-10 PSIG, 0 to 68.95 kPA

Cảm biến áp suất Greystone    PGS100A8A1A Gauge pressure transducer, 24 Vdc loop powered 4-20mA output, -14.7 - 150 PSIG, -101.4 to 1034.2 kPA

Cảm biến áp suất Greystone   PGS100A7A1A Gauge pressure transducer, 24 Vdc loop powered 4-20mA output, -14.7 - 100 PSIG, -101.4 to 689.5 kPA

Cảm biến áp suất Greystone  PGS100A6A1A Gauge pressure transducer, 24 Vdc loop powered 4-20mA output, -14.7 - 60 PSIG, -101.4 to 413.7 kPA

Cảm biến áp suất Greystone   PGS100A5A1A Gauge pressure transducer, 24 Vdc loop powered 4-20mA output, -14.7 - 30 PSIG, -101.4 to 206.8 kPA

Cảm biến áp suất Greystone   PGS100A4A1AGauge pressure transducer, 24 Vdc loop powered 4-20mA output, -14.7 - 15 PSIG, -101.4 to 103.4 kPA

Cảm biến áp suất Greystone   PGS100A20A1A Gauge pressure transducer, 24 Vdc loop powered 4-20mA output, 0-10,000 PSIG, 0 to 68947.6 kPA

Cảm biến áp suất Greystone   PGS100A19A1A Gauge pressure transducer, 24 Vdc loop powered 4-20mA output, 0-5000 PSIG, 0 to 34473.8 kPA

Cảm biến áp suất Greystone   PGS100A18A1AGauge pressure transducer, 24 Vdc loop powered 4-20mA output, 0-1000 PSIG, 0 to 6894.8 kPA

Cảm biến áp suất Greystone   PGS100A17A1AGauge pressure transducer, 24 Vdc loop powered 4-20mA output, 0-500 PSIG, 0 to 3447.4 kPA

Cảm biến áp suất Greystone   PGS100A16A1A Gauge pressure transducer, 24 Vdc loop powered 4-20mA output, 0-300 PSIG, 0 to 2068.4 kPA

Cảm biến áp suất Greystone   PGS100A15A1A Gauge pressure transducer, 24 Vdc loop powered 4-20mA output, 0-250 PSIG, 0 to 1723.2 kPA

Cảm biến áp suất Greystone   PGS100A14A1A Gauge pressure transducer, 24 Vdc loop powered 4-20mA output, 0-200 PSIG, 0 to 1379 kPA

Cảm biến áp suất Greystone   PGS100A13A1A Gauge pressure transducer, 24 Vdc loop powered 4-20mA output, 0-150 PSIG, 0 to 1034.2 kPA

Cảm biến áp suất Greystone   PGS100A12A1A Gauge pressure transducer, 24 Vdc loop powered 4-20mA output, 0-100 PSIG, 0 to 689.5 kPA

Cảm biến áp suất Greystone   PGS100A11A1A Gauge pressure transducer, 24 Vdc loop powered 4-20mA output, 0-50 PSIG, 0 to 344.7 kPA

Cảm biến áp suất Greystone   PGS100A10A1A Gauge pressure transducer, 24 Vdc loop powered 4-20mA output, 0-25 PSIG, 0 to 172.4 kPA
