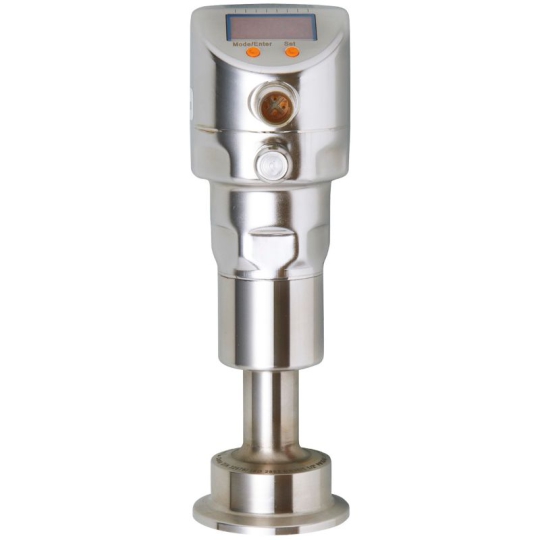

Flush pressure sensor with display

PI2204

PI-010-REZ01-MFRKG/US/ /P

Electronic pressure sensor; -1...10 bar; -14.5...145 psi; -0.1...1 MPa; Clamp DN40 (1,5"); switching signal; analogue signal; IO-Link; (configurable); 4...20, invertible; (scalable) mA; Connector; -25...200 °C; IP 67; IP 68; IP 69K; relative pressure, vacuum

For use in high temperatures in the food and beverage industry

Robust stainless steel housing with hygienic front-flush design

With two-wire and three-wire connection technology

Reduced wiring complexity when operated as two-wire current loop

Integrated clamp diaphragm seal with stainless steel membrane
