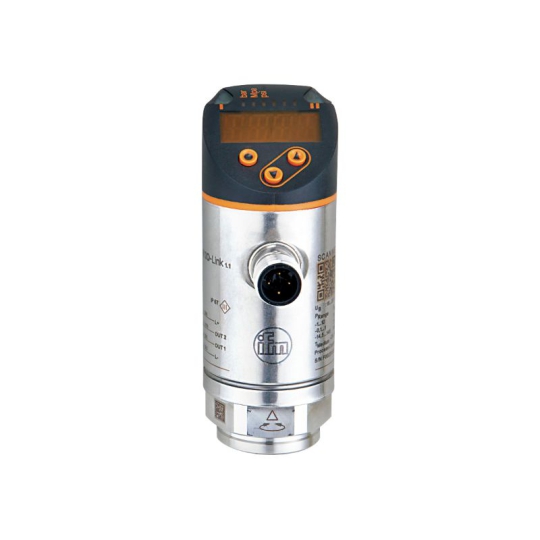

Pressure sensor with display

PN2160

PN-600-SER14-MFRKG/US/ /V

Electronic pressure sensor; 0...600 bar; 0...8700 psi; 0...60 MPa; G 1/4 internal thread; switching signal; analogue signal; IO-Link; (configurable); 4...20; (scalable 1:5) mA; 0...10; (scalable 1:5) V; Connector; -25...80 °C; IP 65; IP 67; relative pressure

Two switching outputs, one of them programmable as IO-Link and one as analogue output

Red/green display for clear identification of the acceptable range

The process connection can be rotated for optimum alignment

With long-term stability thanks to high overload protection

Robust design for use in harsh industrial environments
