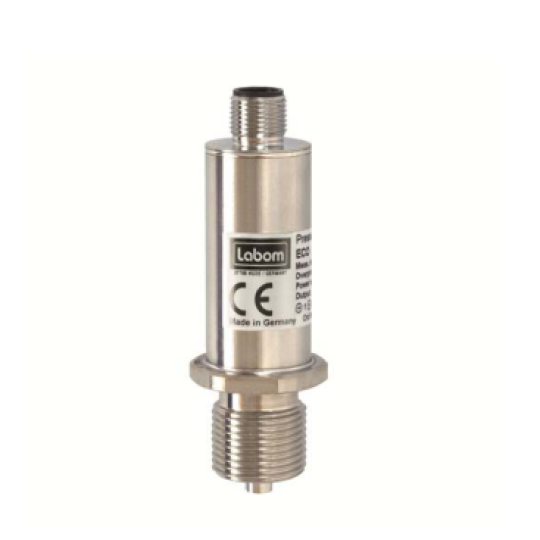

Pressure transmitter COMPACT ECOnomic with threaded connection

Type series CA1100

■ Digital pressure transmitter

■ Case and wetted parts of stainless steel, degree of protection IP 65 / IP 67

■ Measuring ranges

- 0…1 bar up to 0…1000 bar

- -1…0 bar up to -1…15 bar

■ Output signal 4…20 mA, 2-wire technology

■ Accuracy ≤ 0.5 %

■ Easy zero point correction using a magnet

■ Media temperature -40…120 °C

■ EAC declaration (upon request)

Options

■ Approvals/Certificates

- Certificate of measuring equipment for Russian

Federation

■ Output signal (invers) 20…4 mA

■ Various process connections

■ Further electrical connections

■ Accuracy ≤ 0.3%

Application

The pressure transmitter COMPACT ECOnomic is suitable

for measuring the relative and absolute pressure of gases,

vapors and liquids
