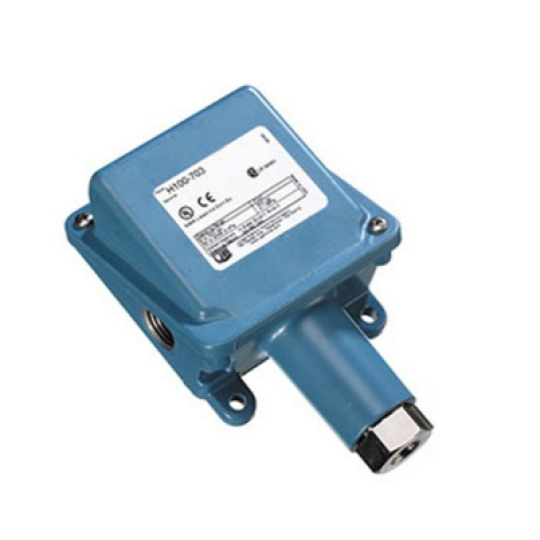

H100-702
UE PRESSURE SWITCH
Model: H100-702
Enclosure: Die cast aluminium, epoxy
powder coated; gasketed;
captive cover screws
Sensing element: Buna-N diaphragm
& O-Ring with nickel-plated brass
1/4" NPTF pressure connection.
Adjustable Range: 3 to 100 psi / 0.2 to 6.9
bar
Deadband: 1 to 4 psi / 68.9mbar to 0.3 bar
Over Range Pressure: 500 psi / 34.5 bar
Proof Pressure: 600 psi / 41.4 bar
Switch Setting: Not included
Switch Output: One SPDT
Electrical Rating: 15A 125/250/480 VAC
resistive
Electrical Connection:1/2" NPTF;
Two 7/8" diameter knockouts.
Classification: Enclosure Type 4X
Approvals: UL listed, cUL certified
