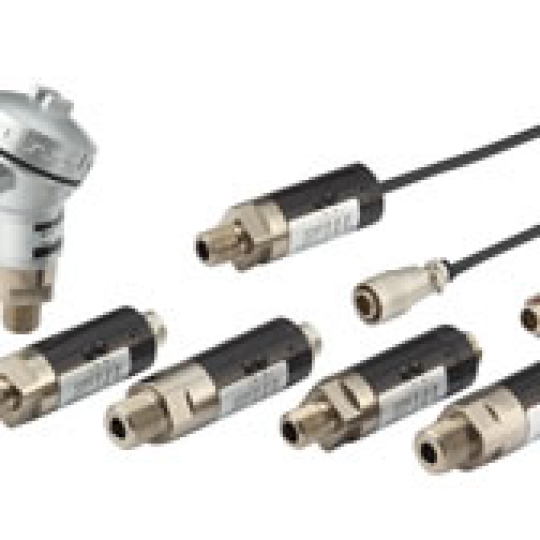

Cảm biến áp suất Valcom High Accurate Pressure Transmitter for Middle High Pressure VPRT(F) series

High accuracy (Nonlinearity: ±0.2%R.C.)

Sensor machined integral with diaphragm offers durability and long life.

Pressure port diameter is as large as 9.5 mm, which allows less sludge or fluid to accumulate

Measured medium Water, oil, gases or other media that will not corrode 15-5PH (precipitation-hardened stainless steel).

Pressure Type Positive and compound pressures can be measured.

Measured Range Can be specified within the range of 1 kPa to 100 MPa of rated capacity (Calibration range: 0.5 MPa to 100 MPa).

Specify more than 50% of rated capacity as the calibration range.

Output type 4–20mA (2 wire system, 4 wire system),

Specify among 4 to 20 mA (2-wire, 4-wire), 1 to 5 V, 0 to 5 V, and 0 to 10 V.

Mã sản phẩm:
Giá:
Liên hệ
Lượt xem:
2063

Thông tin sản phẩm
Bình luận

Specifications

Non Linearity	±0.2%R.C. (1MPa:±0.3%R.C.)
Hysteresis	±0.2%R.C. (1MPa:±0.3%R.C.)
Compensated Temperature Range (Temperature of medium to be measured)	−20–70°C (No condensation or freezing)
Safe Temperature Range (Temperature of medium to be measured)	−30–80°C (No condensation or freezing)
Temperature Effect on Zero Balance	±0.2%R.C./10°C
Temperature Effect on Load	±0.2%R.C./10°C
Safe Overload Rating	150%R.C.
Ultimate Overload Rating	200%R.C.
Insulation Resistance	100MΩ or more 1.(DC50V)
Pressure Port Material	15-5PH (Precipitation hardening stainless steels) (*1)
Connection Screw	Selectable: R3/8 and G3/8 (100MPa: R1/2 or G1/2)
Fastening Torque;Recommended	1–5MPa:20N·m 10–50MPa:40N·m,100MPa:80N·m
Fastening Torque;Maximum	1–5MPa:30N·m 10–50MPa:60N·m,100MPa:120N·m
Power	Selectable: 4DC24V (±10%), 5DC12V (±10%) *Only 24V DC available when analog output is A5
Cable	4- or 2-core shielded (oilproof) cable 2m(Standard) φ6mm
Weight	Approx. 200g (Cable not included)
Accessories	Operating manual 1 copy (Specify English or Japanese.) Test report 1 copy Copper packing(×1) (G screw only)

Model Selection

Example

Selection	Check	Model	Specifications
1.Model		VPRT	High Accurate Pressure Transmitter for Middle High Pressure *Connection screw: R3/8(100MPa: R1/2 only)
1.Model		VPRTF	High Accurate Pressure Transmitter for Middle High Pressure *Connection screw: G3/8(100MPa: G1/2 only)
2.Analog output *Only A6 available for waterproof terminal box type	-	-	Output type	Response frequency	Safe load resistance	Consumption current
		A2	1–5V	500Hz	5kΩ or more	Approx. 23mA
		A3	4–20mA (4-wire)		DC24V: 500Ω or less/ DC12V: 250Ω or less	Approx. 40mA
		A4	0–5V		5kΩ or more	Approx. 23mA
		A5	0–10V		5kΩ or more	Approx. 23mA
		A6	4–20mA (2-wire)	1kHz	DC24V: 500Ω or less/ DC12V: 150Ω or less	-
3.Calibration	-	-	Rated capacity	Example of calibration range
		See right table. Enter the range in the as it is.	1MPa	1MPa (0–1) MPa	0.5MPa (0–0.5) MPa	-0.1–1MPa (-0.1–1) MPa
			2MPa	2MPa (0–2) MPa	1MPa (0–1) MPa	-0.1–2MPa (-0.1–2) MPa
			5MPa	5MPa (0–5) MPa	2.5MPa (0–2.5) MPa	-0.1–5MPa (-0.1–5) MPa
			10MPa	10MPa (0–10) MPa	5MPa (0–5) MPa	9.8MPa (0–9.8) MPa
			20MPa	20MPa (0–20) MPa	10MPa (0–10) MPa	19.6MPa (0–19.6) MPa
			50MPa	50MPa (0–50) MPa	25MPa (0–25) MPa	49MPa (0–49) MPa
			100MPa	100MPa (0–100) MPa	70MPa (0–70) MPa	98.1MPa (0–98.1) MPa
4.Cable Connection		Blank	Standard connector Equivalent to IP40
		W	Waterproof connector Equivalent to IP56
		S	Pigtail Equivalent to IP54
		T	Waterproof terminal box type Equivalent to IP55 *Applicable only when analog output is A6. Cable not included
5.Power		4	DC24Ｖ (±10%)
5.Power		5	DC12Ｖ (±10%)*Not available when analog output is A5
6.Length (Cable)		2m	2m Standard
		3m	3m
		5m	5m
		10m	10m
		□□m	Other length *Contact our sales office for other cable lengths.
