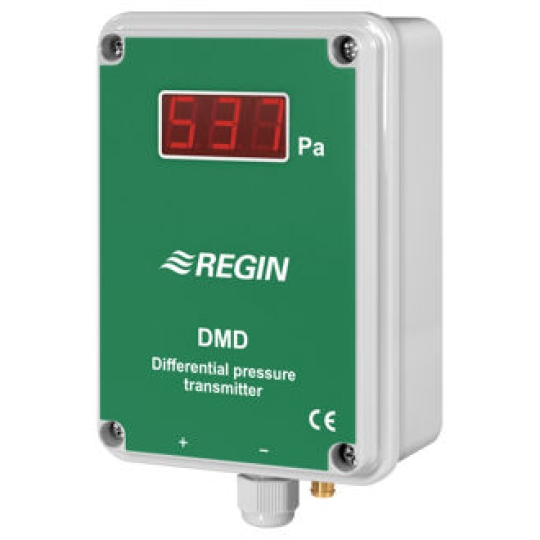

Specifications for DMD-C

Dimensions, external (WxHxD) 89*129*58 mm

Display Yes

Display type LED, three digits

Analogue outputs type (AO) 0…10 V DC / 4…20 mA pressure Controller output signal 0...10 V DC

Analogue output load impedance 0...10v > 2 kΩ

Analogue output load impedance 4...20mA < 500 Ω

Pressure, range sensor 0…999 Pa

Accuracy, pressure sensor 1 ±1 % full scale at 20 °C %

Measuring range pressure 0...100 / 0...300 / 0...500 / 0...999 Pa

Damping (electronic) 0...20 s

P-band 0...300 %

I-time 0…999 s

D-factor 0...999
