Capacitive Sensors
Type PNP current: KAS-80-35-A-M32-
PTFE/VAb-Z03-1-2G-1/2D
Type PNP: KAS-80-34-A-M32-StEx
Art.-No.: KA 0356
Housing: M32 x 1.5
Technical data: Non-flush mountable
Operating distance Sn: 20 mm
Operating distance min. / max. adjustable:
2...25 mm
Electrical version: 4-wire DC
Output function: Antivalent
Operating voltage (UB): 10...30 V DC
Frequency of operating cycles max.: 50 Hz
Permitted ambient temperature: -20...+70 °C
LED-display: Green / yellow
Protective circuit: Built-in
Degree of protection IEC 60529: IP 67*
Connection cable: 4 m, PVC, 5 x 0.34 mm²
Housing material: Stainless steel VA
No.1.4305 / AISI 303
Active surface: PTFE (FDA 21 CFR 177.1550)
Lid: PC (FDA 21 CFR 177.1580)

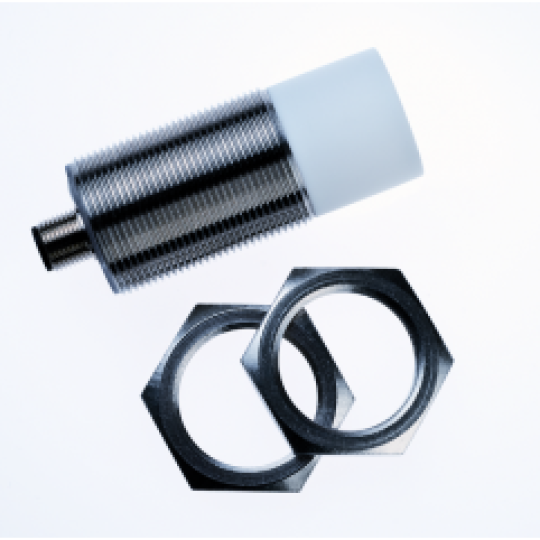

Accessories (is delivered with the unit): 2 nuts
M 32 x 1.5
Original: Rechner/Germany
