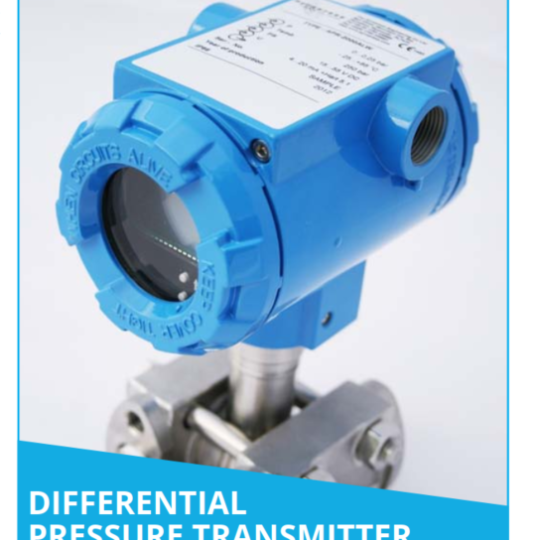

Type PYRD-2000ALW Smart Exia Pressure Transmitter

Code : PYRD-2000ALW/SS/IS/45/0-100mBar/C/M/BCZ

Housing : SS316L

Wetted parts : SS316L

Diaphragm : SS316L

Nominal range : -100 to +100 mBar

Set range : 0 – 100 mBar

Maximum over pressure : 1 Bar

Output : 4 - 20mA

Communication : HART 7/5.1

Supply/Excitation : 10.5-30Vdc (Ex ia)

Accuracy : < +/-0.075% of the nominal range

Process connections : 316 L Kidney Flange manifold with M10 bolt holes

Electrical connection : 2x M20 x 1.5 ISO (one side plugged)

Display : 5-digit, LCD with illumination

Protection : IP66

Name Plate : standard

Mounting : 2” zinc plated pipe bracket

ATEX/IECEx : Ex II 1/2G Ex ia IIC T4/T5 Ga/Gb

EX II 1D Ex ia IIIC T105°C Da
