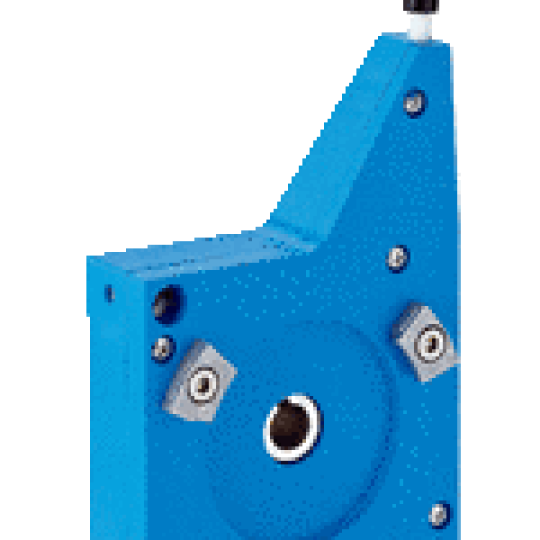

Cảm biến Đo chiều cao SICK Type: MRA-G080-103D3 Part no.: 5322778

Accessory group Wire draw mechanism

Description EcoLine wire draw mechanism for servo flange with 6 mm shaft, measuring range 0 m ... 3 m

Items supplied Without encoder

Measurement range 0 m ... 3 m

Reproducibility ≤ 0.2 mm

Linearity ≤ ± 2 mm

Hysteresis ≤ 0.4 mm

Weight 250 g (Wire draw mechanism)

Weight (measuring wire) 1.2 g/m

Measuring wire material Highly flexible stranded steel 1,4401 stainless steel V4A

Housing material Plastic, Noryl

Housing material, wire draw mechanism Plastic, Noryl

Length of wire pulled out per revolution 230 mm

Actual wire draw length 3.2 m

Spring return force 3.3 N ... 4.4 N 1)

Measuring wire diameter 0.55 mm

Wire acceleration 10 m/s²

Operating speed 6 m/s

Ambient operating temperature –30 °C ... +70 °C

Enclosure rating mechanic IP50

Life of wire draw mechanism Typ. 1,000,000 cycles 2) 3)
