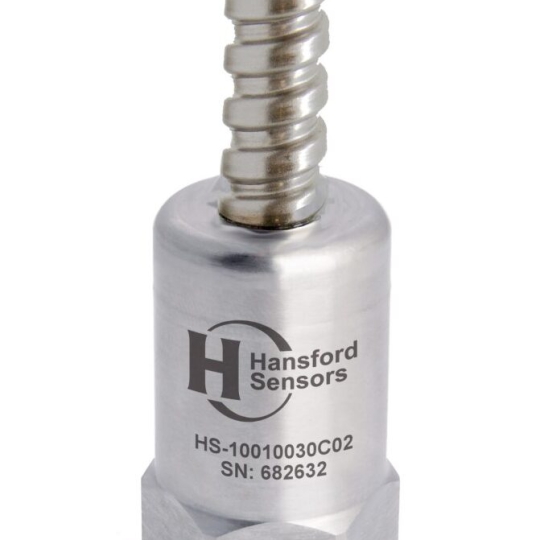

Cảm biến đo độ rung Hansford sensors HS-100 – Top Exit – Integral FEP Cable With Conduit Accelerometer

0944911836 Ms. Duyên 0972835740 Ms. Hà 0385097045 Mr. Hiếu 0905138796 Mr. Ân 0392468875 Ms. Anh
Cảm biến đo độ rung Hansford sensors  HS-100 – Top Exit – Integral FEP Cable With Conduit Accelerometer

Cảm biến đo độ rung Hansford sensors HS-100 – Top Exit – Integral FEP Cable With Conduit Accelerometer

HS-100 – Top Exit – Integral FEP Cable With Conduit Accelerometer

100mV/g AC acceleration output via FEP Cable with Protective Conduit

Key Features

Various mountings

Sealed to IP65

Protective conduit with FEP cable

Included 5 metres of cable (other lengths available on request)

Designed for use in heavy industries

Compression Crystal Construction
  • Liên hệ
  • 103
  • Thông tin sản phẩm
  • Bình luận

Cảm biến đo độ rung Hansford sensors  HS-100 – Top Exit – Integral FEP Cable With Conduit Accelerometer

Thông số kỹ thuật:

Operating Temperature Range

-55 to 140ºC, -67 to 284°F

Sealing

IP65

EMC

EN61326-1:2013

Case Material

Stainless Steel

Sensing Element/Construction

PZT/Compression

Weight

106gms / 3.7 oz (nominal) body only

Screened Cable Assembly

see: www.hansfordsensors.com for options

Top/Side Entry

Top Entry

Design

Standard

Connector/Cable Type

FEP Cable with Protective Conduit

Output

Single Output

Axis

Single (Standard)
