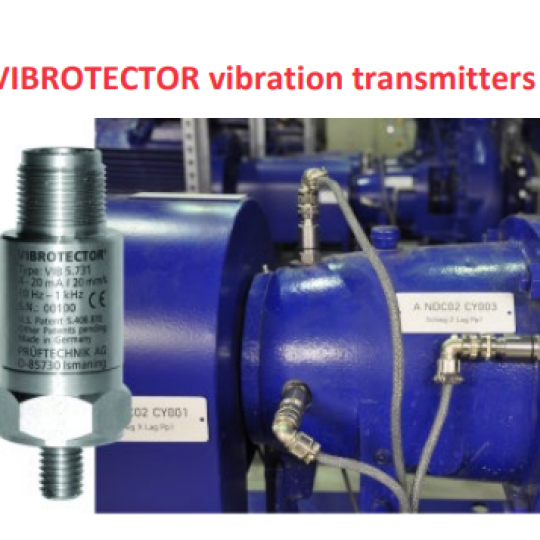

Cảm biến đo độ rung  Pruftechnik VIB 5.731  Pruftechnik VIB 5.736

Technical Data
Parameter VIB 5.731 VIB 5.736
Measurement
Output signal Current intensity level (4-20 mA)
Measurement range (RMS) <20 mm/s
Accuracy ±0.2 mm/s plus ±2% of measured value (Reference: 159 Hz)
Frequency range, ±10% 10 Hz to 1 kHz 2 Hz to 1 kHz
Frequency response
Temperature range, TA -40 °C to 80 °C (-40 °F to 176 °F)
Temperature offsetdrift (@ 4mA) -0.015%/K
Temperature sensitivity -0.08%/K
Electrical
Power supply 24 V DC (±5%), über Stromschleife
Loop resistance 90 to 360 Ohm
Insulation complete
Mechanical
Case material Stainless steel VA 1.4305
Environmental protection IP 67; IP 68 with pre-assembled cable VIB 3.570-L; Immersion depth: 10 m (33 ft)
Mounting M8 hexagon socket set screw or mounting adapter
Connection 2-pin cable connector (Cannon, MIL-C5015)
Shock limit <50 kms-²
Weight 80 g
