T E C H N I C A L F E A T U R E S A N D P O S S I B L E C O N F G U R A T I O N S

Measures without tolerance according to UNI ISO 2768-mk
- Starting force........................: standard <=1,2N; stagno <=5N
(°) IP accord. to CEI EN 60529,EN 60529,IEC 529 Standards
- Operating life........................: > 100x10^6 Cycles
- Impact resistance.....................: 10 G (*)
- Vibration resistance..................: 40 G (**)
- Storage temperature...................: -50 ÷ 120 °C
- Max consumption.......................:please refer to the table on page 2
- Standard stroke.......................:
- Low Noise Output from resistive element in conductive plastic.
- Sealing...............................:
- Max operating speed...................:
- Operating temperature.................: -30 ÷ 100 °C
- Power supply..........................: 60V max Family: L< ± 0,013mm
- Linearity.............................:
- Repeatability.........................:
- Resolution............................: infinite3W - 10W
- Insulation............................: residue current < 5 µA @ 500V per 1 minute
- Current (cursor)......................: <= 1mA (recommended <1µA)
- Current (resistance)..................: <= 10mA
- Output smoothness.....................: < ± 0.1% against input voltage

IP40 IP65
(*) Impact resistance accord. to IEC 68-2-6:1982 Standard
(**) Vibration resistance accor. to IEC 68-2-29:1968 Standard

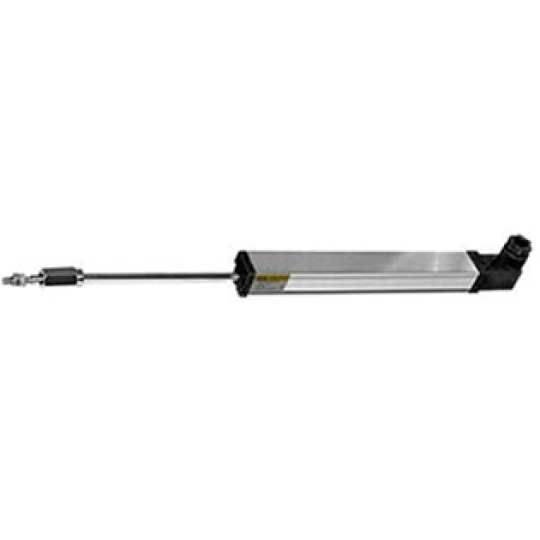

- Anodised aluminium housing with nylon 66 with fiber glass closing flanges.
- Fixing with movable metallic feets.
(please refer to the table on page 2)
5 m/s
±0,05%÷±0,3%
- Electrical connections by cable (standard) or orientable connector C193.
