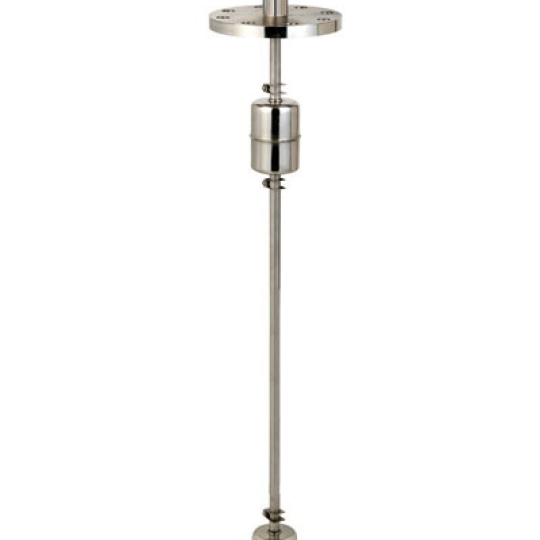

Model : HR-30S-EX-2F

Type : Magnetic Float

Installation : Top

Ambient Temperature : -20 ~ +60 deg.C

Fluid Temperature : Max. 70 deg.C

Operating Pressure : Up to 10kg/cm2

Type of Switch : Reed Switch

Output Signal : 2-SPST (Contact Rating : AC 250V

1A, DC 24V 0.5A)

Enclosure : Ex-Proof (Ex d IIC T6, IP66)

Wetted Parts Material : 316LSS

Housing Material : AL.

Process Connection Size : 80A KS 10K RF

Process Connection Material : STS316L

Measuring Length : L = 1000mm, L1 = 300mm (H),

L2 = 900mm (L)

Float Size / Material : 3" (ø73x105H) / 316LSS /

Guide Pipe : ø21.7

Cable Entry : NPT 1/2"(F) Ex d IIC (Adaptor)

Medium : Water

Tag No. / Reference Serial No. : LS-UT603 /200918408001
