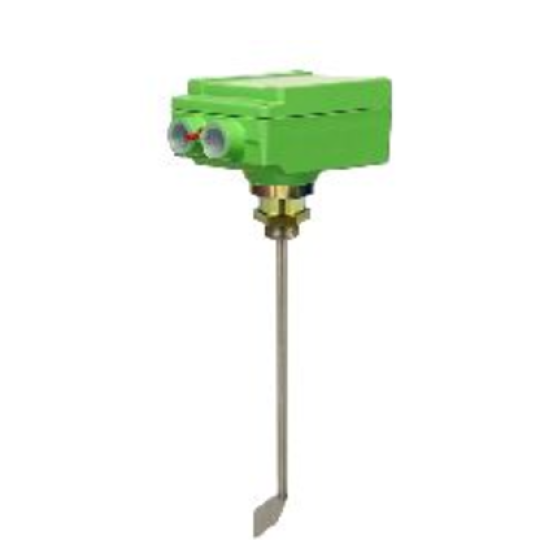

Model : HLV-300

Type : Paddle

Installation : Top or Side

Ambient Temperature : -20 ~ +60 deg.C

Fluid Temperature : Max. 80 deg.C

Operating Pressure : ATM

Power Source : AC 110V/220V 60Hz

Type of Switch / Output Signal : Micro Switch / 1-SPDT (Contact Rating : AC 250V 15A)

Enclosure : Weather Proof, IP65

Wetted Parts Material : 304SS

Housing Material : AL.

Process Connection Size : PF 1" Screw

Process Connection Material : CS

Measuring Length : L = 300mm

Cable Entry : PF 3/4"(F)

Medium : It should be informed.

· Remark :

1. Above specification in Red should be confirmed.
