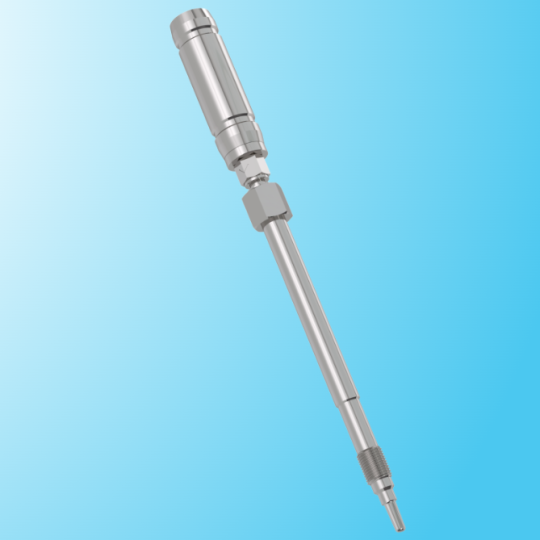

Cảm biến đo nhiệt độ Graeff article number: 117488 Sensor description: GF-7143.1.Kl.A.3-L.DD.10/0.190.G.5000.A.400°C Resistance thermometer Melt- & mass temperature Series GF-7143/M
Graeff article number: 117488
Sensor description: GF-7143.1.Kl.A.3-L.DD.10/0.190.G.5000.A.400°C
Melt Temperature Sensor PT100;
Installation dimensions: 190mm Tip 10mm; 5m ; Production Code : KI.A GF-7143.KIA.3 -L.DD10/0.190.G.5000.A.4|117488
Brand : Graeff
Gräff temperature sensors of the GF-7143 series are particularly suitable for use in temperature measurement on extrusion systems, in tool and machine construction and in the injection molding area. As one of the first German manufacturers and with more than 50 years of experience in the field of melt temperature measurement, we know that not all melts
are the same and therefore not all sensors are the same. High-quality materials and a special manufacturing process characterize this product. A
special feature of this series is the enormous range of possibilities that can be implemented to suit the respective requirements. In addition to the standard process connections such as 1/2”-20UNF-2A, M18x1.5, M10, M14x1.5, all connection sizes can be realized and manufactured. Specially developed measuring tips
make it possible, even under difficult process conditions or when using difficult materials, to record the process variable temperature with great precision! Of course, the service life of our sensors can be extended enormously with special coating options. Even versions made of special materials such as Hastelloy and Inconel are standard with us.
Resistance thermometer Bayonet sensor Series GF-7112
Our article number: 142669
Sensor description: GF-7112.1.Kl.A.3-L.8.W.40.VK-17.-.5000.A.400°C
Our article number: 117488
Sensor description: GF-7143.1.Kl.A.3-L.DD.10/0.190.G.5000.A.400°C
Our article number: 135151
Sensor description: GF-7140.1.3-L.8.50.82.5000.TE-SI.A.100°C
