Cảm biến đo nhiệt độ  PT100 Graeff 135151 Graeff article number: 135151 Sensor description: GF-7140.1.3-L.8.50.82.5000.TE-SI.A.100°C

Temperature Sensor PT100 ;
Installation dimensions: G1/2; Ptube; 50mm; D=8; 5m
Production Code : GF-7140.1.3 L.8.50.82.5000.TE- SI.A.100*C| 135151
Brand : Graeff

Resistance thermometer Bayonet sensor Series GF-7112

Gräff temperature sensors of the GF-7112 series are particularly suitable for use in temperature measurement on extrusion systems and in tool and machine construction. Thanks to the use of high-quality materials and our special manufacturing process, these sensors can be used at temperatures of up to +600°C. Even in the standard version, the measuring sleeve and the connection line are made of high-quality stainless steel 1.4571 and not made of galvanized steel. Especially for the connecting cable, we only use high-quality and selected thermal material, which guarantees an accuracy of better than 1.5K even after use. In addition to a large number of measuring sleeve designs with a diameter of 4.76mm to 10.00mm, we also have a large number of fastening options with or without a thread adapter. For improved anti-kink protection of the cable, there is always an anti-kink spring that can be up to 10,000mm long. Of course, a stainless steel cable with a PTFE jacket is also being used more and more, since the positive effects of the anti-kink protection and a moisture-resistant design characterize the robustness of these sensors. Please also ask about our specially thermally insulated versions.

Resistance thermometer Bayonet sensor Series GF-7112

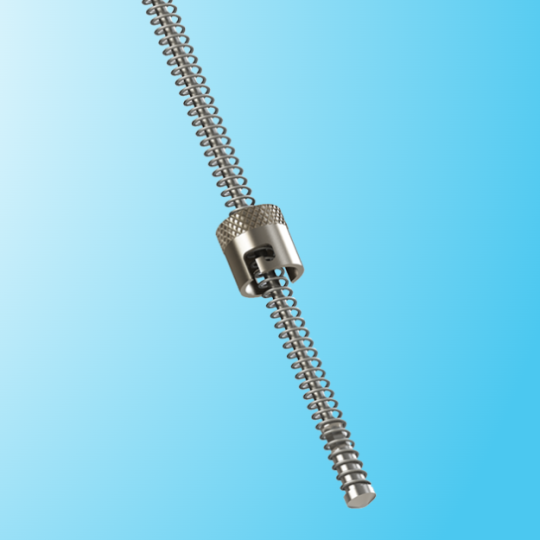

Our article number:    142669
Sensor description:    GF-7112.1.Kl.A.3-L.8.W.40.VK-17.-.5000.A.400°C
Our article number:    117488
Sensor description:    GF-7143.1.Kl.A.3-L.DD.10/0.190.G.5000.A.400°C
Our article number:    135151
Sensor description:    GF-7140.1.3-L.8.50.82.5000.TE-SI.A.100°C
