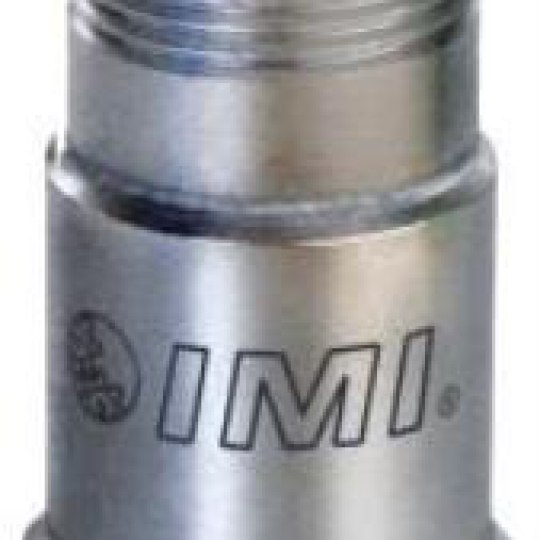

Cảm biến gia tốc 603C01 PCB | Platinum Low-cost Industrial ICP Accelerometer

Platinum Stock Products; General purpose, industrial, ceramic shear ICP® accel, 100 mV/g, 0.5 to 10k Hz, top exit, 2-pin conn., single point ISO 17025 accredited calibration

The 603C01 is one model in a very diverse line of 603-Series accelerometers. The 603-Series includes alternative sensitivity models, hazardous area approved models, dual output models and models with an integral cable.

Sensitivity: (±10%)100 mV/g ( 10.2 mV/(m/s²))

Frequency Range: (±3dB)30 to 600000 cpm ( 0.5 to 10000 Hz)

Sensing Element: Ceramic

Measurement Range: ±50 g ( ±490 m/s²)

Weight: 1.8 oz ( 51 gm)

Mã sản phẩm:
603C01 PCB
Giá:
Liên hệ
Lượt xem:
1481

Thông tin sản phẩm
Bình luận

ENGLISH:	SI:
PERFORMANCE
Sensitivity (±10 %)	100 mV/g	10.2 mV/(m/s²)	[ 1]
Measurement Range	±50 g	±490 m/s²
Frequency Range (±3 dB)	30 to 600000 cpm	0.5 to 10000 Hz	[ 3]
Resonant Frequency	1500 kcpm	25 kHz	[ 4]
Broadband Resolution (1)	350 µg	3434 µm/sec²	[ 4]
Non-Linearity	±1 %	±1 %	[ 2]
Transverse Sensitivity	≤7 %	≤7 %
ENVIRONMENTAL
Overload Limit (Shock)	5000 g pk	49050 m/s² pk
Temperature Range	-65 to +250 °F	-54 to +121 °C
Temperature Response	See Graph %/°F	See Graph %/°F	[ 4]
Enclosure Rating	IP68	IP68
ELECTRICAL
Settling Time (within 1% of bias)	≤2.0 sec	≤2.0 sec
Discharge Time Constant	≥0.3 sec	≥0.3 sec
Excitation Voltage	18 to 28 VDC	18 to 28 VDC
Constant Current Excitation	2 to 20 mA	2 to 20 mA
Output Impedance	<150 Ohm	<150 Ohm
Output Bias Voltage	8 to 12 VDC	8 to 12 VDC
Broadband Electrical Noise (1 to 10000 Hz)	5 µV	5 µV	[ 4]
Spectral Noise (10 Hz)	8 µg/√Hz	78.5 (µm/sec²)/√Hz	[ 4]
Spectral Noise (100 Hz)	5 µg/√Hz	49.1 (µm/sec²)/√Hz	[ 4]
Spectral Noise (1 kHz)	4 µg/√Hz	39.2 (µm/sec²)/√Hz	[ 4]
Electrical Isolation (Case)	>100000000 Ohm	>100000000 Ohm
PHYSICAL
Size - Hex	11/16 in	18 mm
Size - Height	1.65 in	42.2 mm
Weight	1.8 oz	51 gm
Mounting Thread	1/4-28 Female	No Metric Equivalent	[ 5]
Mounting Torque	2 to 5 ft-lb	2.7 to 6.8 Nm
Sensing Element	Ceramic	Ceramic
Sensing Geometry	Shear	Shear
Housing Material	Stainless Steel	Stainless Steel
Sealing	Welded Hermetic	Welded Hermetic
Electrical Connector	2-Pin MIL-C-5015	2-Pin MIL-C-5015
Electrical Connection Position	Top	Top

* All specifications are at room temperature unless otherwise specified

Specification Notes

[ 1] Conversion Factor 1g = 9.81 m/s².
[ 2] Zero-based, least-squares, straight line method.
[ 3] The high frequency tolerance is accurate within ±10% of the specified frequency.
[ 4] Typical.
[ 5] 1/4-28 has no equivalent in S.I. units.
[ 6] See PCB Declaration of Conformance PS023 or PS060 for details.

Accessories


Supplied
081A40	Mounting stud, 1/4-28 x 0.438" long stainless steel screw with hex socket and brass tip	1
ICS-2	Calibration of industrial accel., single-point, 100 Hz reference sensitivity	1

Optional Versions

( EX ) Hazardous Area Approval- contact factory for specific approvals

	ENGLISH	SI
Hazardous Area Approval	EEx nL IIC T4, -40°C<=Ta<=121°C, II 1 G
Hazardous Area Approval	Cl I, Div I, Groups A, B, C, D; Cl II, Div I, Groups E, F, G; Cl III, Div I
Hazardous Area Approval	Ex ia IIC T4, AExia IIC, T4
Hazardous Area Approval	Cl I, Div 2, Groups A, B, C, D; ExnL IIC T4, AExnA IIC T4
Hazardous Area Approval	EEx nL IIC T4, -40°C<=Ta<=121°C, II 3 G
