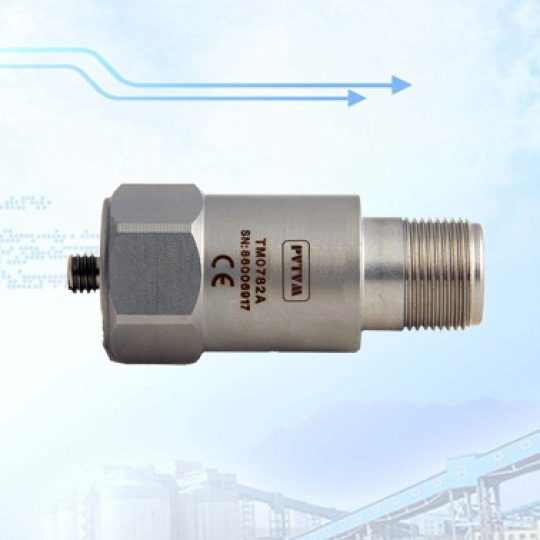

Cảm biến gia tốc Provitech TM0782A Accelerometer

Cảm biến gia tốc Provitech TM0782A Accelerometer

The TM0782A-K accelerometer kit consists of one accelerometer and one 5 meter cable. This accelerometer kit directly interfaces with PVTVM’s signal conditioners: DTM, TR transmitters, DM Dual Monitors and PT580 vibration switches to measure case vibration in acceleration or velocity.
  • Provitech TM0782A
  • Liên hệ
  • 1560
  • Thông tin sản phẩm
  • Bình luận

Sensitivity:                    100mV/g, @ 25oC, ±10%

Frequency Response:          0.5 - 10,000Hz (±3dB)

Acceleration Range:            50g

Isolation:                      Fully isolated

Electrical Noise:               0.0007g

Power Requirement:           2 - 10mA constant current

18 - 30VDC

Bias Voltage:                  10 - 14VDC

Resonance Frequency:               30 kHz

Maximum Transmission Distance:

300 meters (1,000 feet)
