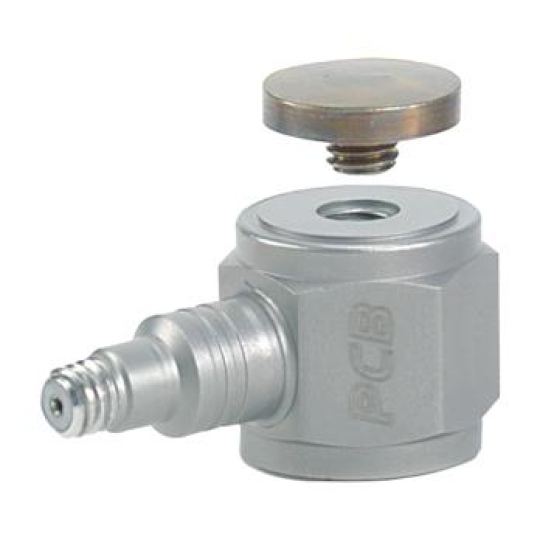

Cảm biến lực PCB MODEL : 208C03 PCB | ICP FORCE SENSOR
ENGLISH: | SI: | ||
---|---|---|---|
PERFORMANCE | |||
Sensitivity (±15 %) | 10 mV/lb | 2248 mV/kN | |
Measurement Range (Compression) | 500 lb | 2.224 kN | |
Measurement Range (Tension) | 500 lb | 2.224 kN | |
Maximum Static Force (Compression) | 3000 lb | 13.5 kN | |
Maximum Static Force (Tension) | 500 lb | 2.224 kN | |
Broadband Resolution (1) | 0.005 lb-rms | 0.02 N-rms | [2] |
Low Frequency Response (-5 %) | 0.0003 Hz | 0.0003 Hz | [3] |
Upper Frequency Limit | 36000 Hz | 36000 Hz | [4] |
Non-Linearity | ≤1 % FS | ≤1 % FS | [1] |
ENVIRONMENTAL | |||
Temperature Range | -65 to +250 °F | -54 to +121 °C | |
Temperature Coefficient of Sensitivity | ≤0.05 %/°F | ≤0.09 %/°C | |
ELECTRICAL | |||
Discharge Time Constant (at room temp) | ≥2000 sec | ≥2000 sec | |
Excitation Voltage | 20 to 30 VDC | 20 to 30 VDC | |
Constant Current Excitation | 2 to 20 mA | 2 to 20 mA | |
Output Impedance | ≤100 Ohm | ≤100 Ohm | |
Output Bias Voltage | 8 to 14 VDC | 8 to 14 VDC | |
Spectral Noise (1 Hz) | 0.000211 lb/√Hz | 0.000942 N/√Hz | [2] |
Spectral Noise (10 Hz) | 0.000109 lb/√Hz | 0.000488 N√Hz | [2] |
Spectral Noise (100 Hz) | 0.0000387 lb/√Hz | 0.000173 N/√Hz | [2] |
Spectral Noise (1000 Hz) | 0.00000863 lb/√Hz | 0.0000385 N/√Hz | [2] |
Output Polarity (Compression) | Positive | Positive | |
PHYSICAL | |||
Stiffness | 6 lb/µin | 1.05 kN/µm | [2] |
Size - Hex | 0.625 in | 15.88 mm | |
Size - Height | 0.625 in | 15.88 mm | |
Size - Sensing Surface | 0.500 in | 12.7 mm | |
Weight | 0.80 oz | 22.7 gm | |
Housing Material | Stainless Steel | Stainless Steel | |
Sealing | Hermetic | Hermetic | |
Electrical Connector | 10-32 Coaxial Jack | 10-32 Coaxial Jack | |
Electrical Connection Position | Side | Side | |
Mounting Thread | 10-32 Female | 10-32 Female |
