The EE160 is optimized for cost effective, accurate measurement of relative

humidity (RH) and temperature (T) in building automation.

Reliable

Best long-term stability even in polluted or aggressive environment is ensured by

the encapsulated measurement electronics inside the probe and E+E proprietary

protection of the sensing element.

Versatile

The measured data is available on two voltage or current (2-wire) outputs, or on

the RS485 interface with BACnet MS/TP or Modbus RTU protocol. Additionally,

the EE160 features a passive T output.

Functional Design

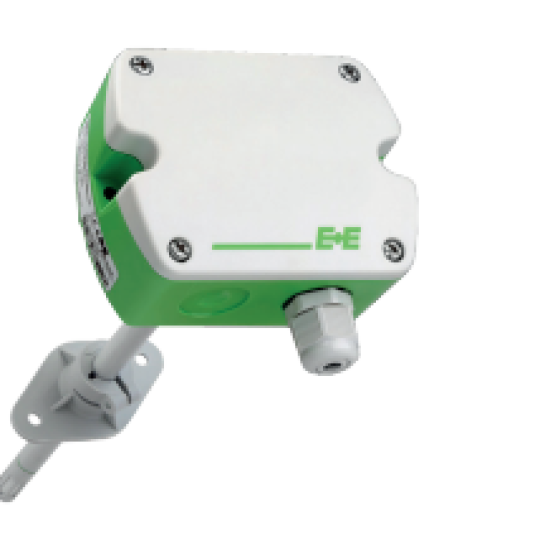

EE160 is available for wall or duct mount. The IP65 / NEMA 4 enclosure minimizes

installation costs and provides outstanding protection against contamination and condensation.

Comfortable Configuration and Adjustment

With an optional configuration adapter and the free EE-PCS Product Configuration Software, the user can set the RS485 interface

parameters, the output scaling and perform one or two point adjustment for RH and T.
