Continuous monitoring for toxic gas

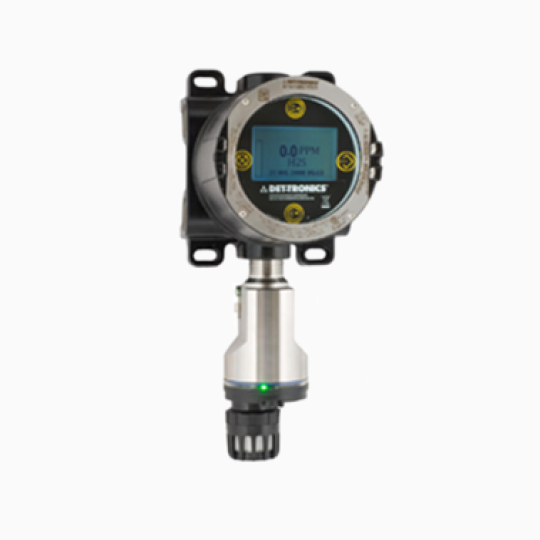

The Det-Tronics GT3000 line of electrochemical fixed-point toxic-gas detectors is designed and engineered to provide continuous monitoring of the atmosphere for potentially hazardous toxic gas leaks or oxygen depletion. Both explosion-proof and intrinsically safe models are available.

The GT3000 Toxic Gas Detector is not available for sale in the European Union (EU) and the United Kingdom (UK).

The GT3000 family currently includes sensors that detect each of the following gases in various concentration levels:

hydrogen sulfide (H2S) - certified SIL 2 capable

hydrogen (H2)

oxygen (O2) - certified SIL 2 capable

carbon monoxide (CO)

nitrogen dioxide (NO2)

ammonia (NH3)

chlorine (Cl2)

sulfur dioxide (SO2)

A complete GT3000 detector consists of a transmitter (GTX) and a sensor module (GTS). The transmitter generates a 4-20 mA output signal with HART that is proportional to the concentration of the target gas and corresponds directly to 0-100% full-scale output.

FlexVu promo

In addition to being compatible with the FlexVu® Universal Display, the GT3000 is approved as a stand-alone unit and supports local calibration without the FlexVu display.

Features

Hot-swappable IS sensor module for live maintenance without declassification of hazardous areas

Hydrophobic filter easily replaced without opening the device or use of tools

Suitable for outdoor applications requiring an IP66 rating

Magnetic switch and LEDs for user interface - also can use HART devices and FlexVu® Universal Displays for UI

Event and calibration logs are stored in non-volatile memory

Technical Specifications

Two-wire, loop-powered device for fault tolerance

EMI/RFI hardened (when specific model selected)

Electrochemical sensor cell for increased accuracy, stability and reliability

Sensor factory calibrated to specific gas type and target concentration level

Maximum loop resistance of 300 ohms at 18 Vdc, 600 ohms at 24 Vdc

316 stainless steel transmitter enclosure
