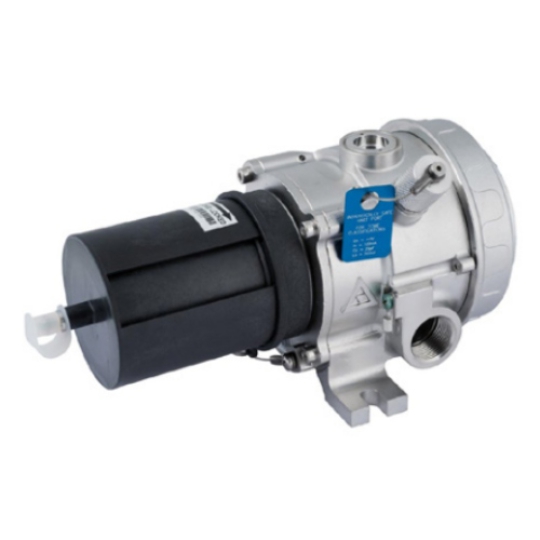

Cảm biến phát hiện khí gas Det-Tronics PIRECLB11A1T1 (014046-202) Det-Tronics  PointWatch Eclipse  PIRECL Infrared Hydrocarbon Gas Detector

The PointWatch Eclipse PIRECL Hydrocarbon Detector (Spec Sheet: 90-1138) is our most rugged stainless steel, point infrared gas detector providing detection of methane, propane, butane and ethylene, among other flammable hydrocarbon gases in the LFL range.  Standard signal outputs include isolated 4-20 mA, HART communication protocol, and RS485 serial communication supporting Modbus. An Eagle Quantum Premier (EQP) version, and optional 2 alarm plus 1-fault relay package are also available. A tri-color LED provides visual display of operating status. The weather baffle provides excellent optics protection with an easy twist-lock removal.

Model PITECLB11A1T2 PointWatch Eclipse Point Infrared Gas Detector P/N: 014046-245
Model X5200GS4M23SE2 UVIR Flame Detector with Kr85 free Source Tube P/N: 013267-001
Model LS2000SM18LMSE1S Line-of-Sight Infrared GAS Detector P/N: 012731-553
Model :  PIRECLA1A1W1
Part No:007168-001
Model PIRECLA1A1W1, PointWatch Eclipse Point Infrared Gas
Detector, 3/4" NPT, 4-20 mA with HART Protocol and RS-485: 0- 100% LFL Full Scale Range, HART Communication Port, Weather Baffle with Hydrophobic filter, FM/CSA/ATEX/IECEx, Division/Zone Exd e.
Model :   PIRECLA11A1T1
Part No:014046-201
Model PIRECLA11A1T1, PointWatch Eclipse Point Infrared Gas Detector, 3/4" NPT, 4-20 mA with HART Protocol and RS-485: 0-100% LFL Full Scale Range, FAST RESPONSE, HART Communication Port, Weather Baffle with Hydrophobic filter, SIL/FM/CSA/ATEX/IECEx, Division/Zone Ex d e

Cảm biến phát hiện khí gas Det-Tronics PIRECLB11A1T1 (014046-202) Det-Tronics Model :  PIRECLA1A1W1 Part No:007168-001, Model :   PIRECLA11A1T1 Part No:014046-201 ,PIRECLA1A1W1

Description
1 N/A 007165-002 Weather baffle with standard inlet nozzle w/hydrophobic filter
1 NA 009862-001 PIRECL Module, 4-20 mA, Standard Response
1 NA 009862-001P PIRECL Module, 4-20 mA, Standard Response, Propane Calibration
1 NA 009862-002 PIRECL Module, LON, Standard Response
1 NA 009862-003 PIRECL Module, 4-20 mA, SIL, Standard Response
1 NA 009862-004 PIRECL Module, LON, SIL, Standard Response
1 NA 009862-901 PIRECL Module, 4-20 mA, Russian, Standard Response
1 NA 009862-902 PIRECL Module, LON, Russian, Standard Response
1 NA 009862-903 PIRECL Module, 4-20 mA, SIL, Russian, Standard Response
1 NA 009862-904 PIRECL Module, LON, SIL, Russian, Standard Response
1 NA 009862-005 PIRECL Module, 4-20 mA, SIL, Fast Response
1 NA 009862-006 PIRECL Module, LON, SIL, Fast Response
*For PIRECL Module installation instructions, refer to document 95-8707.
UD10 - HART 5 UD10 - HART 7
PIRECL - HART 5 YES YES
PIRECL - HART 7 LIMITED* YES
PIRECL Weather Baffle 007165-002

Gas Detector

GD-5003 & GD-5004
Type: Infra-Red Point Type, 3 wire Circuit, 316SS
Ex-roof: EEx "d", Zone 1, IIA, T3, IP 65 Min.
Power: 24 VDC +/-20%
Output: 4-20 mA with HART
Manufacture: Det-tronics
Model: PIRECLB1A1W1
Part No: 007168-002

Model: LS2000SM18SMSE1S
Model: PIRECLB11A1T1
Model PITECLB11A1T2 PointWatch Eclipse Point Infrared Gas Detector P/N: 014046-245
Model X5200GS4M23SE2 UVIR Flame Detector with Kr85 free Source Tube P/N: 013267-001
Model LS2000SM18LMSE1S Line-of-Sight Infrared GAS Detector P/N: 012731-553

NO    CODE    BRAND    DESCRIPTION
1    PIRECL-A1A1W1    Det-Tronics    Infrared Hydrocarbon Gas Detector
Approvals: Exde FM/CSA/IECEx/ATEX
Range: 0-100% L.E.L
Output: 4 - 20 mA current source, 3 wire,
Cable Entry: 3/4"NPT
2    PIRECL-B1A1T1    Det-Tronics    Infrared Hydrocarbon Gas Detector
Range: 0-100% L.E.L
Output: 4 - 20 mA current source, 3 wire,
Cable Entry: M25
Approvals: SIL/FM/CSa/atEX/CE/IECEx
3    X3301S4N13W2    Det-Tronics    Mutispectrum IR Flame Detector,
Field of View : 90 deg, vertical : 75 deg
Sensitivity : 50ft. for distance for a 1 sp.st (0.1m2) gasoline pan fire
Input power: 18-32VDC, 8W Max
-Output: Relay/4-20 mA, 3 wires.
Ingress protection : IP67
Hazardous area : ATEX Eex d
