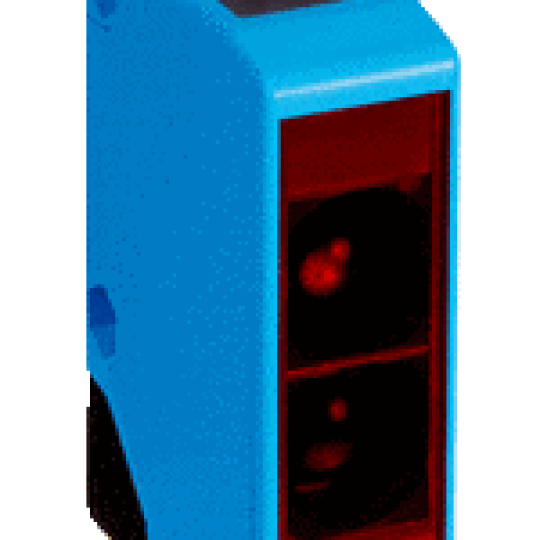

Type: WL250-2P2431; Part no.: 6044699

Features

Sensor/ detection principle Photoelectric retro-reflective sensor, Dual lens

Dimensions (W x H x D) 20 mm x 65 mm x 43.9 mm

Housing design (light emission) Rectangular

Sensing range max.

0.01 m ... 15 m 1)

0.01 m ... 12 m 2)

Sensing range

0.01 m ... 13 m 1)

0.01 m ... 11 m 2)

Type of light Visible red light

Light source LED 3)

Light spot size (distance) Ø 260 mm (8 m)

Angle of dispersion Approx. 2°

Adjustment Potentiometer, 2 turns 4)

1) Reflector PL80A.

2) Reflector P250.

3) Average service life: 100,000 h at TU = +25 °C.

4) With position indicator.
