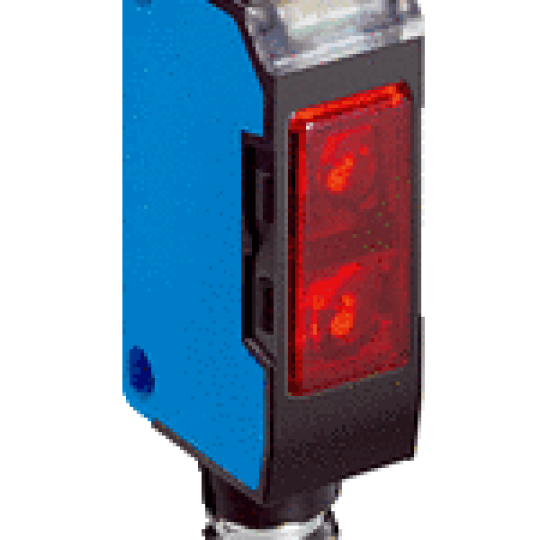

Type: WT150-N460 Part no.: 6011047

Features

Sensor/ detection principle Photoelectric proximity sensor, Background suppression

Dimensions (W x H x D) 10 mm x 28 mm x 18 mm

Housing design (light emission) Rectangular

Sensing range max. 2 mm ... 100 mm 1)

Focus Approx. 5°

Type of light Visible red light

Light source LED 2)

Angle of dispersion Approx. 5°

Adjustment Potentiometer, 5 turns

1) Object with 90 % reflectance (referred to standard white, DIN 5033).

2) Average service life: 100,000 h at TU = +25 °C.

Mechanics/electronics

Supply voltage 10 V DC ... 30 V DC 1)

Ripple ± 10 % 2)

Current consumption 20 mA 3)

Switching output NPN

Switching mode Light/dark switching

Switching mode selector Selectable via L/D control cable

Output current Imax. ≤ 100 mA

Response time ≤ 0.5 ms 4)

Switching frequency 1,000 Hz 5)

Connection type Male connector M8, 4-pin

Circuit protection

A 6)

B 7)

C 8)

D 9)

Protection class II

Weight 7 g

Housing material Plastic, ABS

Optics material Plastic, PC

Enclosure rating IP67

Items supplied BEF-W150-A mounting bracket

Ambient operating temperature –25 °C ... +55 °C

Ambient temperature, storage –40 °C ... +75 °C

UL File No. NRNT2.E128350 & NRNT8.E128350

1) Limit values.

2) May not exceed or fall below Uv tolerances.

3) Without load.

4) Signal transit time with resistive load.

5) With light/dark ratio 1:1.

6) A = VS connections reverse-polarity protected.

7) B = inputs and output reverse-polarity protected.

8) C = interference suppression.

9) D = outputs overcurrent and short-circuit protected.
