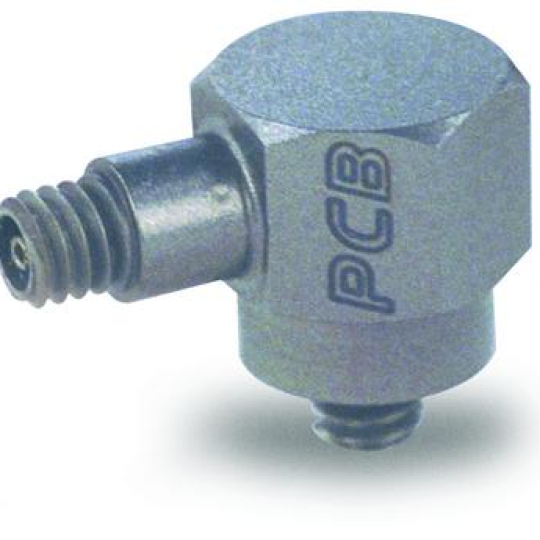

Cảm biến rung 320C15 PCB

Cảm biến rung 320C15 PCB

ESS mini (2 gm), quartz shear ICP® accel., 10 mV/g, 2 to 10k Hz, 5-44 side conn., 5-40 mtg stud, to +325 F/+163 C

Sensitivity: (±10%)10 mV/g (1.02 mV/(m/s²))

Measurement Range: ±500 g pk (±4900 m/s² pk)

Broadband Resolution: 0.005 g rms (0.05 m/s² rms)

Frequency Range: (±5%)1.0 to 10000 Hz

Sensing Element: Quartz

Weight: 0.07 oz (2.0 gm)
  • 320C15 PCB
  • Liên hệ
  • 790
  • Thông tin sản phẩm
  • Bình luận

320C03 TEST, ICP/IEPE Accel ACCELEROMETER

320C04 TEST, ICP/IEPE Accel ACCELEROMETER

320C15 TEST, ICP/IEPE Accel ACCELEROMETER

320C18 TEST, ICP/IEPE Accel ACCELEROMETER

320C20 TEST, ICP/IEPE Accel ACCELEROMETER

320C33 TEST, ICP/IEPE Accel ACCELEROMETER

320C52 TEST, ICP/IEPE Accel 10 MV/G, LTC ICP® RING ACCEL, 5-44 SIDE

320C53 TEST, ICP/IEPE Accel ACCELEROMETER, 1MV/G
