Specifications:

- Working pressure 200 bar

- Max. output current 200 mA

- Supply Voltage 10 ÷ 30 V d.c.

- Current consumption at 24 V d.c. <18 mA

- Outputs PNP - N.O.

- Protection type IP 67

- Temperature range -25°C +70°C

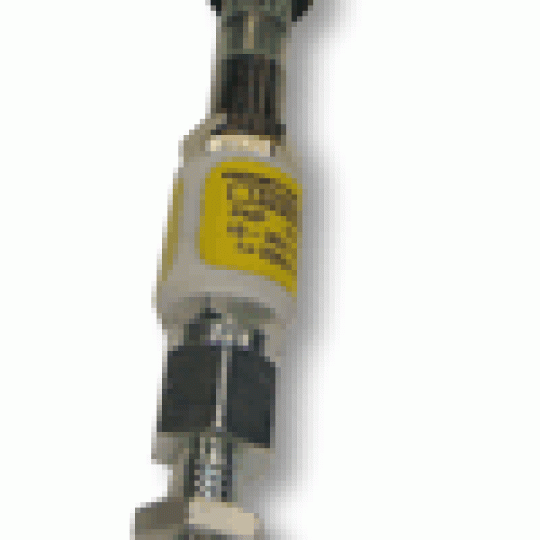

This proximity switch has been designed for controlling feeder blocks of the Dual line system.

It is particularly suitable for controlling the correct lubrication of very important friction points.

In order to obtain a correct movement of the piston in both directions you must install a proximity switch on the adjusting turret and another on the opposite side.
