Cảm biến tiệm cận TQ902 proximity sensor 111-902-000-011-A1-B1-C75-D2-E1000-F2-G800-H10
8 mV/µm or 2.5 µA/µm (2 mm range), 4 mV/µm or 1.25 µA/µm (4 mm range), −40 to 180 °C, Ø8.2 mm tip, standard-mount.
The TQ902 proximity sensor is a high-quality, high-reliability sensor for use with an EA902 extension cable and IQS900 signal conditioner, which provides either a voltage output or a current output.
The TQ902 is a standard-mount sensor that is designed and built for long-term use in extreme environments characterised by high temperatures and/or hazardous areas (potentially explosive atmospheres).
Note: The TQ902 and the TQ912 have the same specifications and performance characteristics but are intended for applications with different installation (mounting) requirements: the TQ902 is a standard-mount sensor and the TQ912 is a reverse-mount sensor.
MEASUREMENT RANGE |
0.16 to 0.32 in | 2 to 4 mm |
---|---|
OPERATING TEMPERATURE RANGE |
−40 to 356 °F | −40 to 180 °C |
INTEGRATED CABLE LENGTH |
1.6, 3.3, 4.9, 6.6 or 16.4 ft | 0.5, 1.0, 1.5, 2.0 or 5.0 m |
PROTECTION RATING |
IP68 |

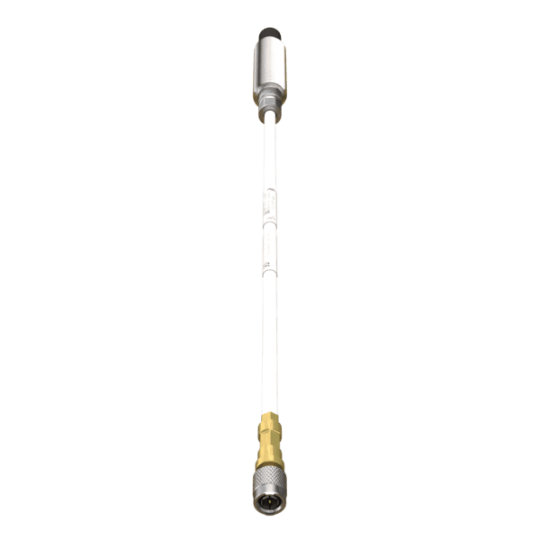

Proximity transducer, TQ902
111-902-000-011-A1-B1-C75-D2-E1000-F2-G800-H10
(Ngưng SX:111-402-000-013-A1-B1-C075D000-E010-F2-G010-H10)
