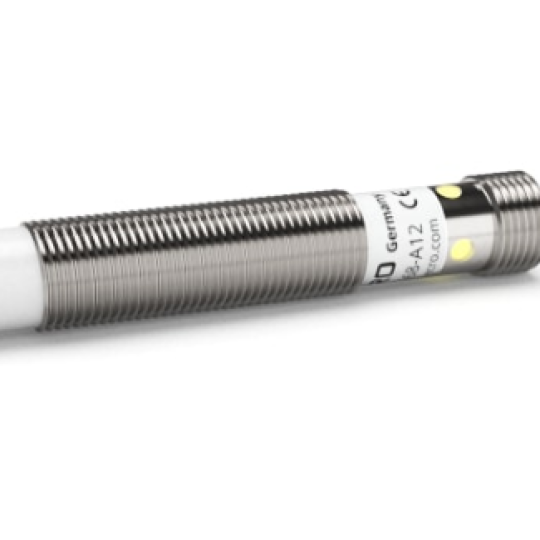

Cảm biến tiệm cận XERCO IPS12-N12PO68-A12

0944911836 Ms. Duyên 0972835740 Ms. Hà 0385097045 Mr. Hiếu 0392468875 Ms. Anh 0707602728 Ms. Vân

Cảm biến tiệm cận XERCO IPS12-N12PO68-A12

Specifications

Common

Series 3-wire DC

Sensing Distance Class advanced

Tariff Code 85365019

Weight 0.0000

Functional

Sensing Distance 12 mm

Mounting non-flush

Output Function NO

Output Polarity PNP

Operating Voltage 10…30 VDC

Reverse Polarity Protection built-in

Current Consumption <8 mA

Current Load Capability 200 mA

Short Circuit Protection built-in, self-resetting

Voltage Drop <1.5 V @ 200 mA

Switching Frequency 400 Hz

Repeatability <1 % (Sn)

Hysteresis 3…15 %

Reduction Factors Alu 0.45 · Brs 0.50 · SS 0.85

Operating Temperature -20…70 °C · -4…158 °F

Mechanical

Housing Material brass, nickel plated

Housing Length 68 mm

Max Mounting Torque 15 Nm

Sensing Face Material PBT

IP Code IP67

Electric Connection connector M12

Switching Indicator built-in

Mã sản phẩm:
IPS12-N12PO68-A12
Giá:
Liên hệ
