Electrical data

Power supply type : Direct current

Working voltage [V]: 6 ÷ 30

Current consumption [mA]: < 12 mA @ 24Vdc

Protection class : III

Reverse polarity protection : Presente

Outputs

Electrical design : NPN

Function : NO

Max voltage drop [V]: < 1.8

Max output current [mA]: 200

Max switching frequency [Hz]: 2000

Short circuit protection : Present

Overload protection : Present

Detection zone

Switching distance-Sn [mm]: 2

Real sensing distance-Sr [mm]: 2 ±10%

Operative distance-So [mm]: 0 ÷ 1.62

Extended sensing distance : Si

Accuracy and Deviations

Correction factor : Stainless steel: 0.9 - Brass: 0.5 - Aluminium: 0.4 - Copper: 0.4

Hysteresis [%Sr]: < 10

Switching point drift [%Sr]: -10 ÷ +10

Repeatability [%Sn]: < 3

Environmental conditions

Temperature limits [°C]: -25 ÷ +70

IP rating : IP65-IP66-IP67

Display and control elements

Display : Output switching status - 1 x LED: Yellow

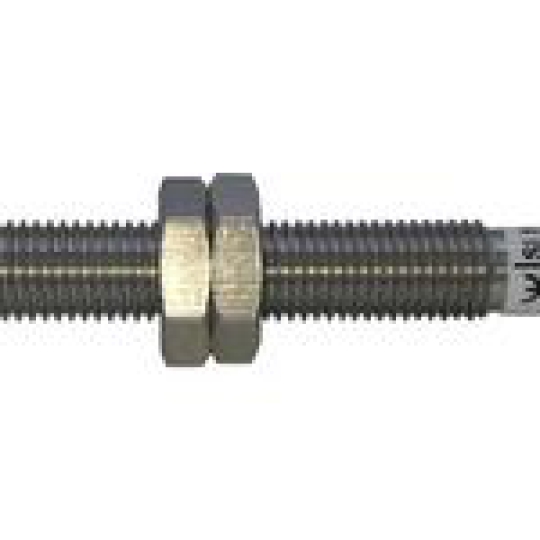

Mechanical data

Housing : Threded type

Thread designation : M8x1

Dimensions [mm]: M8x1 - L=50

Materials : Housing: AISI 303 - Sensing area: POM grey - Lock nuts: Nickel-plated brass

Mounting : Embeddable

Weigth [g]: 60

Electrical connection

Cable : 2 m - PVC/PVC - 3 x 0.14 mm²

Compliance to Standards / Directives

Directives compliance : 2014/30/EU -Electromagnetic compatibility directive (EMC)

Standards compliance : EN60947-5-2 - Product standard
