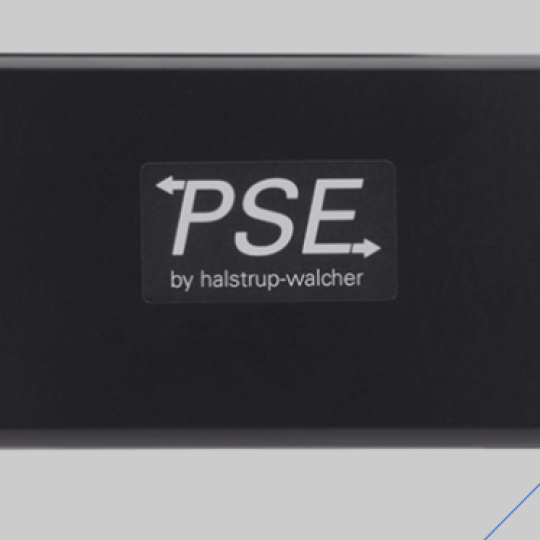

PSE 33x-14

Integrated positioning system for automatic format changeover in machines

Position

Longitudinal construction

Nominal torque / nominal rated speed

2 Nm / 150 rpm

5 Nm / 68 rpm

10 Nm / 25 rpm

25 Nm / 10 rpm

Interface / bus communication

CANopen, PROFIBUS DP, DeviceNet, Modbus RTU, Sercos, EtherCAT, PROFINET, EtherNet/IP, POWERLINK, IO-Link

Positioning accuracy

0.9° (position taken directly at the output shaft)

Power supply

24 VDC

Output shaft

14 mm hollow shaft with adjustable collar

Positioning range

250 rotations, not subject to mechanical limits

Protection class

IP 54, IP 65 on req
