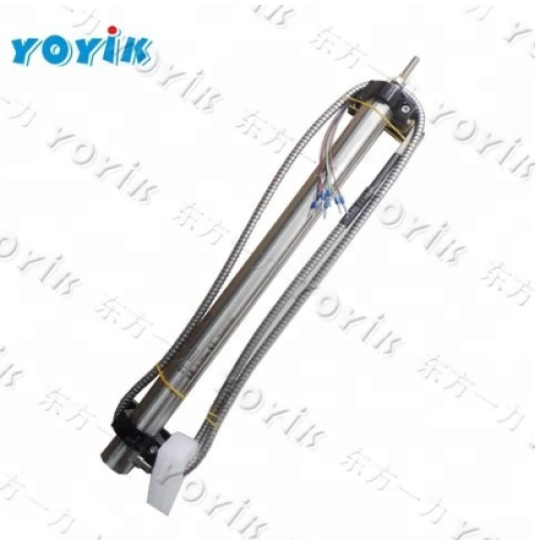

HTD series displacement sensors convert mechanical measurement of liner movement into electrical power.
Through this principle, sensors measure and control displacement automatically. So it is widely used in industrial productions, defense constructions, research institutes and other aspects. HTD series displacement sensors have simple structure, high reliability, excellent usage and maintainability, long life, good linearity and high repeat precision. It also has a wide measuring range, low time constant and fast dynamic response.
THREE WIRE TYPE

Specifications
1. Linear range: 0~1000mm, 12 sizes.
2. Linearity: ± 0.3% full stroke.
3. Operating temperature: -40~150℃ (conventional) -40~210℃ (high temp)
4. Coefficient of sensitive: ± 0.03%FSO./℃
5. Lead wires: three Teflon insulated sheathed cable, outside stainless steel sheathed hose.
6. Vibration tolerance: 20g up to 2 kHz

Notes
1. Sensor wires: the blue wire is center tap.
2. Linear range: within two scale lines of the sensor rod (based on “Inlet”).
3. The sensor rod number and shell number must to be consistent, supporting the use.
4. Sensor fault diagnosis: measure RED-YEL coil resistance.
5. Keep sensor shell and signal demodulation unit away from strong magnetic fields.

Range Table
Model Linear Range A (mm) Length (mm) Coil Resistance (Ω± 15%)
HTD-50-3-□ 0~50 200 333
HTD-100-3-□ 0~100 200 578
HTD-150-3-□ 0~150 250 590
HTD-200-3-□ 0~200 300 773
HTD-250-3-□ 0~250 350 425
HTD-300-3-□ 0~300 470 620
HTD-350-3-□ 0~350 470 620
HTD-400-3-□ 0~400 620 757
HTD-500-3-□ 0~500 770 339
HTD-600-3-□ 0~600 770 339
HTD-800-3-□ 0~800 950 1263
HTD-1000-3-□ 0~1000 1240 410

*□ refers to wire length (the figure can be 30, 40, 50, etc.). If required wire length is 3 meters, this figure will be 30.
Wire length defaults to 2 meters if this figure is blank.

SIX WIRE TYPE
Specifications
1. Linear range: 0~800mm, 16 sizes.
2. Linearity: ±0.3% full stroke.
3. Excitation voltage: 3VRMS (1~17VRMS).
4. Excitation frequency: 2.5 KHz (400 Hz~100 KHz)
5. Operating temperature: -40~150℃ (conventional) -40~210℃ (high temp)
6. Coefficient of sensitive: ± 0.03%FSO./℃
7. Lead wires: six Teflon insulated sheathed cable, outside stainless steel sheathed hose.
8. Vibration tolerance: 20g up to 2 kHz.
Notes
1. Sensor wires: primary: brown yellow, sec1: black green, sec2: blue red.
2. Linear range: within two scale lines of the sensor rod (based on “Inlet”).
3. The sensor rod number and shell number must to be consistent, supporting the use.
4. Sensor fault diagnosis: measure PRI coil resistance and SEC coil resistance.
5. Keep sensor shell and signal demodulation unit away from strong magnetic fields.Range Table

Model Linear Range A (mm) Length (mm) PRI Coil Resistance (Ω± 15%) SEC Coil Resistance Unipolar Biopolar (Ω± 15%)
HTD-20-6-□ 0~20 ± 10 120 130 540
HTD-25-6-□ 0~25 ± 12.5 140 148 244
HTD-35-6-□ 0~35 ± 17.5 160 77 293
HTD-50-6-□ 0~50 ± 25 185 108 394
HTD-70-6-□ 0~70 ± 37.5 240 119 375
HTD-100-6-□ 0~100 ± 50 270 130 350
HTD-150-6-□ 0~150 ± 75 356 175 258
HTD-200-6-□ 0~200 ± 100 356 175 202
HTD-250-6-□ 0~250 ± 125 466 227 286
HTD-300-6-□ 0~300 ± 150 600 300 425
HTD-350-6-□ 0~350 ± 175 700 354 474
HTD-400-6-□ 0~400 ± 200 750 287 435
HTD-500-6-□ 0~500 ± 250 860 311 162
HTD-600-6-□ 0~600 ± 300 980 362 187
HTD-700-6-□ 0~700 ± 350 1100 271 150
HTD-800-6-□ 0~800 ± 400 1220 302 164

*□ refers to wire length (the figure can be 30, 40, 50, etc.). If required wire length is 3 meters, this figure will be 30.
Wire length defaults to 2 meters if this figure is blank.
