Cáp cảm biến R6W-0-J9T2A -32 Wilcoxon
Model :R6W-0-J9T2A -32
J9T2A twisted pair , braided shield , high temp 200 ° C , yellow Teflon® jacketed 32 ' cable ( 10m ) with 6W molded , 2 socket MIL-C-5015 , IP67 ( submersible to 1 meter ) connector with electrical isolation between the shield and transducer housing on one end and blunt cut on other end . Molded connector must be assembled at factory
-
R6W-0-J9T2A -32 Wilcoxon
-
Liên hệ
-
1707
- Thông tin sản phẩm
- Bình luận

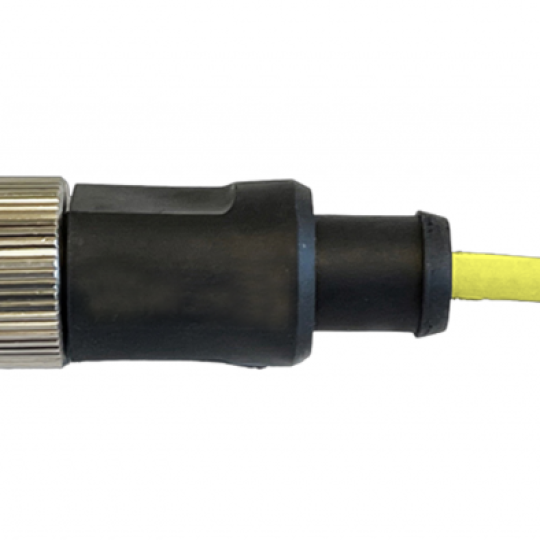

High temperature, twisted pair cable assembly with molded connector, 32 ft.
Model R6W-0-J9T2A-32
Twisted pair, braided shield, high temp 200°C, yellow Teflon® jacket with molded MIL-C-5015, model 6W IP67 connector with electrical isolation between shield and transducer housing, blunt cut, 32 feet.
Features
- 200°C-rated cable with Teflon jacket
- Braided shield
- IP67-rated molded connector
- 2 conductors
- 2-socket MIL-C 5015 style connector
| PARAMETER | VALUE |
|---|---|
| IP rating | IP67 |
| Connector 1 (sensor) | R6W (MIL-C-5015, 2-socket, molded, isolated shield) |
| Connector 2 (termination) | Blunt cut |
| Cable type | J9T2A (twisted pair, braided shield, yellow Teflon jacket) |
| Cable length | 32 ft |
| Cable O.D. | 0.190 in |
| Temperature range | -80°C to +200°C |
| Capacitance (pF/ft) | 27 pF/ft |
