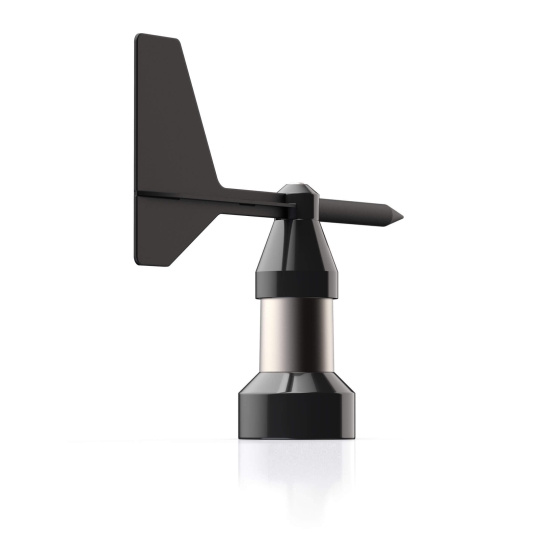

Chỉ báo hướng gió WR-Z-MH; WR-P-MH FSG: WIND DIRECTION INDICATOR
TECHNICAL DATA
Housing material aluminum,
grey lacquered
Housing diameter Ø 45 mm
Housing length 229 mm
IP code of housing IP65
Measuring range 0–360°
Resolution 1°
Temperature range
heated - 40 °C up to + 70 °C
Temperature range
normal - 20 °C up to + 70 °C
Shock 50 g, 6 ms
Vibration 4 g Sinus, 5–100 Hz
Connection plug or cable
Weight 800 g
Maximum load
(Current output) 600 Ω
Accuracy 2 %
Supply 18–36 V DC
Shaft heating <5°C 18–33 V DC max.
0,4 A
Current consumption < 80 mA
without heating
Immunity standard EN61000-6-2
Emission standard EN61000-6-4


Type designation Signal output
WR-Z-MH-2L         4–20 mA / 2-wire technology
WR-Z-MH-3L         4–20 mA / 3-wire technology
WR-Z-MH-SPA      0–10 V
WR-Z-MH-CAN     CAN-Bus / CANopen
WR-Z-MH-Pnet     Profinet

WR-P-MH
WR-Z-MH-2L         4–20 mA / 2-wire technology
WR-Z-MH-3L         4–20 mA / 3-wire technology
WR-Z-MH-SPA      0–10 V
WR-Z-MH-CAN     CAN-Bus / CANopen
WR-Z-MH-Pnet     Profinet
