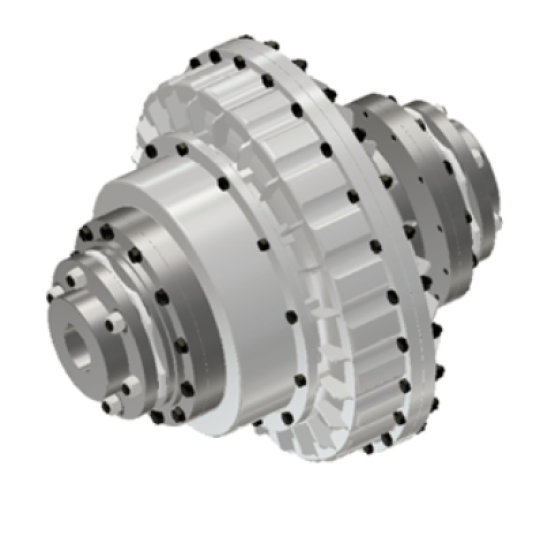

Khớp nối thủy lực NARA Fluid Coupling
Standard Type
• Since there is no mechanical connection, the motor and the driven equipment can be protected against any impulsive load.
• When driving components with two or more motors, each motor can distribute the load by adjusting the quantity of oil.
Chamber Type
Oil in the chamber flows into the circuit through the nozzle when it is at rest and flows into the circuit when operating, therefore the start- up time is extended and smooth operation is possible during start-up. During normal operation after start-up, oil in the chamber is in the working circuit, resulting little slip. It is particularly effective when used for the purpose of controlling the starting torque of the belt conveyor.
