Công tắc an toàn Euchner NM12RBA-M (ORDER NO. 084518)
NM12RBA-M (ORDER NO. 084518)

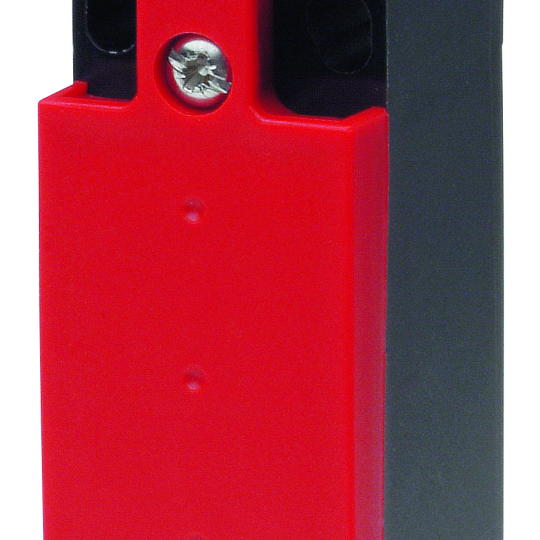

Safety switch NM.RB with roller plunger, long housing
Cable entry M16 x 1.5
-
NM12RBA-M
-
Liên hệ
-
1704
- Thông tin sản phẩm
- Bình luận
Electrical connection ratings
| Connection cross-section | 0.34 ... 1.5 mm² |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Rated insulation voltage Ui | 250 V |
| Short circuit protection according to IEC 60269-1 | 4A gG |
| Switching current | |
| min. at 24 V | 1 mA |
| Switching voltage | |
| min. at 10 mA | 12 V |
| thermal rated current Ith | 4 A |
| Utilization category | |
| AC-15 | 4A 230V |
| DC-13 | 4A 24V |
Mechanical values and environment
| Actuating element | |
| Slide bearing plastic | Roller plunger |
| Actuating force | 15 N |
| Actuation frequency | max. 5000 1/h |
| Ambient temperature | -20 ... +80 °C |
| Approach direction | A |
| Approach speed | max. 60 m/min |
| Connection | |
| 3 x | M16 x 1.5 |
| Degree of protection | IP67 |
| Design | long housing |
| Installation orientation | any |
| Material | |
| Contact | Silver alloy, gold flashed |
| Housing | Reinforced thermoplastic |
| Mechanical life | 30 x 10⁶ |
| Number of door position NO contacts | 1 |
| Number of door position positively driven contacts | 2 |
| Switching principle | Slow-action switching contact |
Reliability values according to EN ISO 13849-1
| Monitoring of the guard position | |
| B10d | 20 x 10⁶ |
