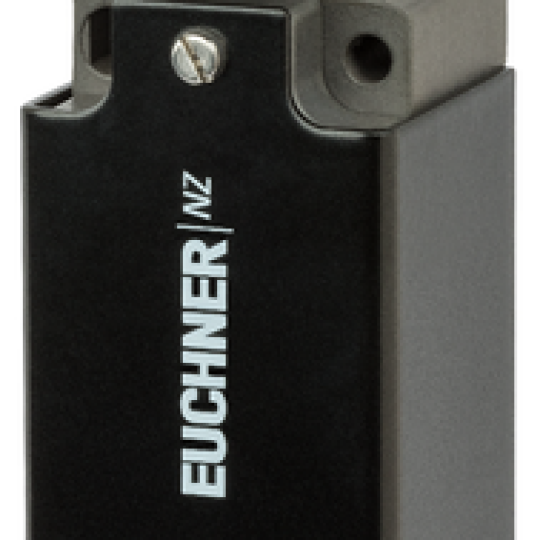

Công tắc an toàn NZ1RS-3131-M-EX (ORDER NO. 094169) Euchner
Safety switch NZ.RS ATEX, steel roller ø 12 mm, roller plunger
ATEX version
Version C according to EN 50041 (steel roller ø 12 mm)
Suitable for use in zones 2 and 22 (gases and dusts)
Cable entry M20 x 1.5
-
NZ1RS-3131-M-EX
-
Liên hệ
-
2428
- Thông tin sản phẩm
- Bình luận
Electrical connection ratings
| Connection cross-section | 0.34 ... 1.5 mm² |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Rated insulation voltage Ui | 50 V |
| Short circuit protection according to IEC 60269-1 | 4A gG |
| Switching current | |
| min. at DC 24V | 1 mA |
| Switching voltage | 12 V |
| thermal rated current Ith | 4 A |
| Utilization category | |
| AC-15 | 4A 50V |
| DC-13 | 4A 24V |
Mechanical values and environment
| Actuating element | |
| Slide bearing metal | Roller plunger |
| Actuating force | |
| at 20 °C | 30 N |
| Ambient temperature | -20 ... +75 °C |
| Approach speed | 0.1 ... 20 m/min |
| Clamping range for cable | 6.5 ... 12 mm |
| Connection | |
| 1 x | Cable gland M20 x 1.5 |
| Degree of protection | IP67 |
| Installation orientation | any |
| Material | |
| Contact | Silver alloy, gold flashed |
| Housing | Anodized die-cast alloy |
| Mechanical life | 30 x 10⁶ |
| Number of door position positively driven contacts | 2 |
| Number of NO contacts | 2 |
| Roller diameter | 12 |
| Switching principle | Slow-action switching contact |
Reliability values according to EN ISO 13849-1
| Monitoring of the guard position | |
| B10d | 20 x 10⁶ |
Miscellaneous
| Explosion protection | |
| incl. cable gland | II3G Ex nR IIB T5 Gc X / II3D Ex tc IIIC T100°C Dc |
