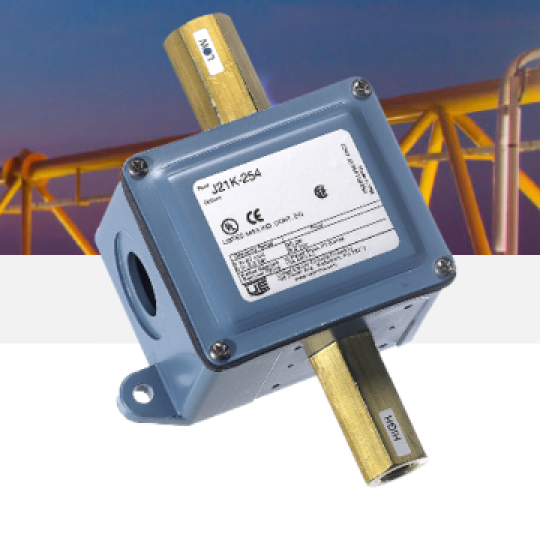

Công tắc chênh áp J21K-150 UE - United Electric Controls J21K Series Differential Pressure Switch

Công tắc chênh áp J21K-150  UE - United Electric Controls     J21K Series Differential Pressure Switch

Công tắc chênh áp J21K-150 UE - United Electric Controls J21K Series Differential Pressure Switch

The J21K Series is simple to install and operate for alarm, safety and emergency shutdown applications requiring a higher switch sensitivity. It monitors the difference between two system pressures or vacuum using sealed, opposing bellows sensors. As an electromechanical switch, it can safely operate independently of the control system and switch reliably when called upon, free from potential communication errors or cyber concerns.

Typical applications that utilize the J21K Series include proof of flow, filter monitoring, vacuum pumps, chillers, and compressors.
  • J21K-150
  • Liên hệ
  • 495
  • Thông tin sản phẩm
  • Bình luận

Welded 316L stainless steel bellows with 1/2” NPT (female) pressure connections
Công tắc chênh áp UE - United Electric Controls J21K-S127B 30 "Hg Vac to 0 -1 to 0 0.4 to 0.6 "Hg 13,5 to 20,3 mbar 15 1.0 30 "Hg Vac to 0 -1 to 0
Công tắc chênh áp UE - United Electric Controls J21K-S140B 0 to 6 0 to 0,4 0.1 to 0.4 6,9 to 27,6 mbar 6 0,4 30 "Hg Vac to 30 -1 to 2,1
Công tắc chênh áp UE - United Electric Controls J21K-S150B 0 to 40 0 to 2,8 0.3 to 0.7 20,7 to 48,3 mbar 300 20,7 30 "Hg Vac to 300 -1 to 20,7
Công tắc chênh áp UE - United Electric Controls J21K-16021 1 to 15 0,07 to 1,0 0.1 to 0.6 6,9 to 41,4 mbar 125 8,6 30 "Hg Vac to 125 -1 to 8,6
316L welded stainless steel bellows with 1/4" NPT (female) pressure connections
Công tắc chênh áp UE - United Electric Controls J21K-357 0 to 70 0 to 4,8 2 to 4 0,1 to 0,3 70 4,8 30 "Hg Vac to 350 -1 to 24,1
Brass bellows with 1/4” NPT (female) pressure connections
Công tắc chênh áp UE - United Electric Controls J21K-127 30 "Hg Vac to 0 -1 to 0 0.4 to 0.6 "Hg 13,5 to 20,3 mbar 15 1.0 30 "Hg Vac to 0 -1 to 0
Công tắc chênh áp UE - United Electric Controls J21K-140 0 to 6 0 to 0,4 0.1 to 0.4 6,9 to 27,6 mbar 6 0,4 30 "Hg Vac to 30 -1 to 2,1
Công tắc chênh áp UE - United Electric Controls J21K-150 0 to 40 0 to 2,8 0.3 to 0.7 20,7 to 48,3 mbar 40 2,8 30 "Hg Vac to 180 -1 to 12,4
Công tắc chênh áp UE - United Electric Controls J21K-16020 1 to 15 0,07 to 1,0 0.1 to 0.6 6,9 to 41,4 mbar 125 8,6 30 "Hg Vac to 125 -1 to 8,6
Phosphor bronze bellows with 1/4" NPT (female) pressure connections
Công tắc chênh áp UE - United Electric Controls J21K-232 0 to 25 0 to 1,7 0.6 to 1 41,4 to 68,9 mbar 25 1,7 30 "Hg Vac to 110 -1 to 7,6
Công tắc chênh áp UE - United Electric Controls J21K-254 0 to 90 0 to 6,2 2 to 4 0,1 to 0,3 90 6,2 30 "Hg Vac to 200 -1 to 13,8
