Công tắc giới hạn auxema-stemmann INH4/50 3INA200/4 3 INA-T21, 3 INA-T22,3 INA-T23, 3 INA-R21, 3 INA-R22, 3 INA-R23, 3 INA-S21, 3 INA-S22, 3 INA-S23, IC-1,IC-2, IC-3, IC-4

0944911836 Ms. Duyên 0972835740 Ms. Hà 0385097045 Mr. Hiếu 0392468875 Ms. Anh 0707602728 Ms. Vân
Công tắc giới hạn auxema-stemmann INH4/50  3INA200/4   3 INA-T21, 3 INA-T22,3 INA-T23, 3 INA-R21, 3 INA-R22, 3 INA-R23, 3 INA-S21, 3 INA-S22, 3 INA-S23, IC-1,IC-2, IC-3, IC-4

Công tắc giới hạn auxema-stemmann INH4/50 3INA200/4 3 INA-T21, 3 INA-T22,3 INA-T23, 3 INA-R21, 3 INA-R22, 3 INA-R23, 3 INA-S21, 3 INA-S22, 3 INA-S23, IC-1,IC-2, IC-3, IC-4

Công tắc giới hạn auxema-stemmann INH4/50 3INA200/4 3 INA-T21, 3 INA-T22,3 INA-T23, 3 INA-R21, 3 INA-R22, 3 INA-R23, 3 INA-S21, 3 INA-S22, 3 INA-S23, IC-1,IC-2, IC-3, IC-4
  • Liên hệ
  • 175
  • Thông tin sản phẩm
  • Bình luận

​Auxema-Stemmann là một công ty quốc tế có trụ sở tại Mungia, País Vasco, Tây Ban Nha, chuyên thiết kế và sản xuất các hệ thống cung cấp điện và truyền dữ liệu cho thiết bị di động công nghiệp. Được thành lập vào năm 1967 với tên gọi AUXEMA (Auxiliar Eléctrica de la Manutención), công ty đã hợp tác với công ty Đức August Stemmann vào năm 1969, tạo nên tên gọi hiện tại: Auxema-Stemmann Española, S.A.

Sản phẩm của Auxema-Stemmann bao gồm:​

  • Carriles dẫn điện trần và cách điện​ Auxema-Stemmann

  • Cuộn cáp​ Auxema-Stemmann

  • Bộ thu trượt​ Auxema-Stemmann

  • Hệ thống hộp dẫn điện​ Auxema-Stemmann

  • Công tắc giới hạn​ Auxema-Stemmann

  • Bộ nguồn​ Auxema-Stemmann

  • Xe đẩy cáp và ống​ Auxema-Stemmann

  • Kẹp ray cho cần cẩu​ Auxema-Stemmann

  • Cáp cho thiết bị xử lý Auxema-Stemmann

  • Hệ thống nâng hạ​ Auxema-Stemmann

  • Hệ thống bảo vệ rãnh cáp BELTFLEX​ Auxema-Stemmann

Công ty phục vụ nhiều ngành công nghiệp khác nhau, bao gồm cảng và bến tàu, luyện kim, khai thác mỏ, công nghiệp xi măng và đường hầm, năng lượng gió, công nghiệp dầu khí ngoài khơi và ngành giải trí. ​

Một trong những sản phẩm nổi bật của Auxema-Stemmann là hệ thống bảo vệ cáp BELTFLEX, được thiết kế để bảo vệ cáp trong các môi trường công nghiệp khắc nghiệt.

Công tắc giới hạn auxema-stemmann INH4/50  3INA200/4   3 INA-T21, 3 INA-T22,3 INA-T23, 3 INA-R21, 3 INA-R22, 3 INA-R23, 3 INA-S21, 3 INA-S22, 3 INA-S23, IC-1,IC-2, IC-3, IC-4

Công tắc giới hạn auxema-stemmann  3INA200/4

Công tắc giới hạn auxema-stemmann 3 INA-T21

Công tắc giới hạn auxema-stemmann 3 INA-T22

Công tắc giới hạn auxema-stemmann 3 INA-T23

Công tắc giới hạn auxema-stemmann 3 INA-R21

Công tắc giới hạn auxema-stemmann 3 INA-R22

Công tắc giới hạn auxema-stemmann 3 INA-R23

Công tắc giới hạn auxema-stemmann 3 INA-S21

Công tắc giới hạn auxema-stemmann 3 INA-S22

Công tắc giới hạn auxema-stemmann 3 INA-S23

Công tắc giới hạn auxema-stemmann IC-1

Công tắc giới hạn auxema-stemmann IC-2

Công tắc giới hạn auxema-stemmann IC-3

Công tắc giới hạn auxema-stemmann IC-4

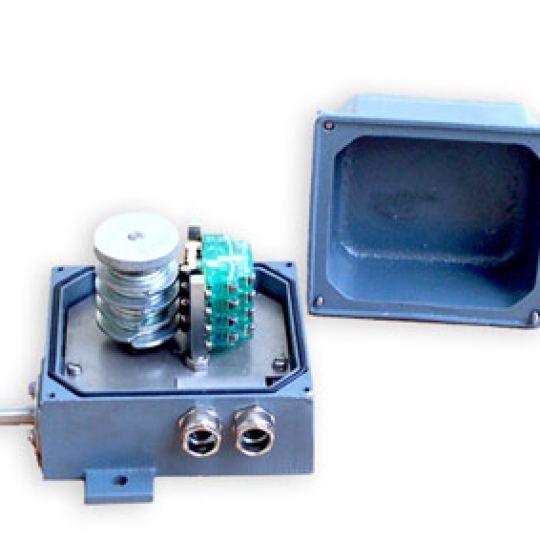

Auxiliary power service

Limit switches for auxiliary tension are manufactured are manufactured in IP 55 protection, 1th2, 10 A, 400 V.

The casing is made of grey cast iron and the cover can be manufactured in:

-          Light metal alloy in IP55 protection for IC type switches.

-          Light metal alloy or grey cast iron for 3INA type switches.

-          The switches can be supplied with 3,4 or 8 contacts, depending on the cover size and type of equipment.

-          Working temperature range: -40ºc and 70ºC

-          Switching capacity: 600 operations/hour.

-          Nominal tension: 250A, 400A and 630A

-          Depending on the casing type lamps, push button, etc. may be installed

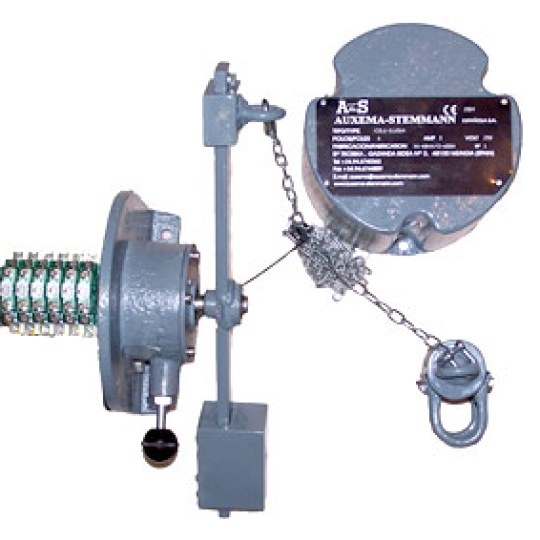

Main power service

For material handling machinery two and three phases, cunter weight action, power circuits.

Nominal service voltage al 45 degrees, 660 V. A/C 3- phase and 250V D/C (other D/C voltages available upon request) Auxiliary contacts available upon request.

Nominal intensities 250 A, 400 A and 630 A.

The switch consists of a heavy duty housing in cast iron with a sealed cover in IP-55 protection.

The levers are linked to a hub and fitted to the drive shaft by means of a cotter.

The counterweightss are adjustable on the levers, to which they are attached with pressed bolts.

The actuation of the circuit breaker is instantanious and its breaking power is about 20 KA.

Upon special request the switch can be equipped with auxiliary breakers before the power breakers. In this version, emergency disconnection can be made, this can be repeated with the same switch after cheching the auxiliary contacts.
