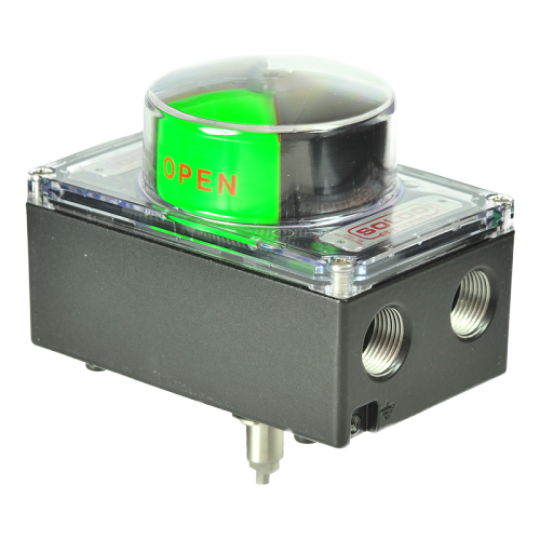

SB series limit switch box as follows:

-stainless steel shaft mounted on bearings

-ISO F05 mounting pattern and VDI/VDE3845 shaft

-independent adjustable cams

No. 2 of -SPDT electromechanical switches, silver plated contacts, rating max. 5A@250VAC, 0,6A@125VDC, 3A@24VDC, rating min. 50mA@24VDC (resistive load)

-circuit board with green screw terminal strip

- black polyester powder coating

-nr. 2 M20x1.5 cable entries

-UV resistant and V0 self extinguish polycarbonate indicator dome

-red and green visual position indicator

-GOST certified box for Russian market, with RTN permit

-ordinary location

-weather proof IP67

-ambient temperature range: -20+80

-aluminum heavy duty body

-shock resistant and UV resistant polycarbonate cover
