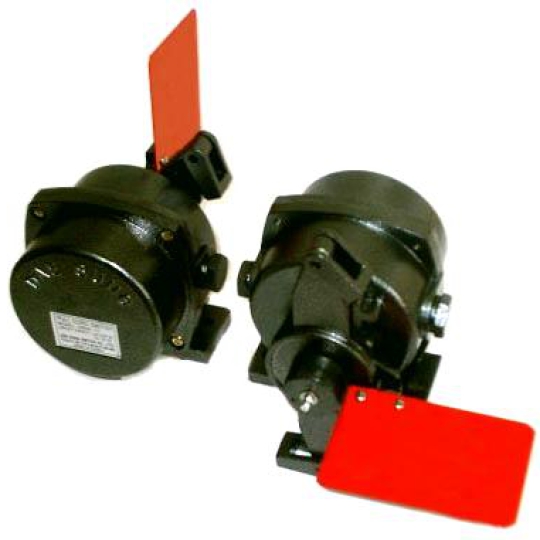

This `EMERGENCY STOP' switch is called a pull cord switch.it cling to the side of the belt conveyor or machines.when needed the driver or whoever know of the emergency and withes to suddenly stop the belt conveyor or other machines pulls the wire rofe connected to the pull cord switch.

1. One body of aluminum diecasting, has high machanicalintensity and light weight.

2. switch and cam moved 2-step of tension by double spring,high absorption of machanical vibration and impact.

3. Designed water-proof(IP65) and dust-proof. shaft, boltand nut made of stainless steel(SUS 304).

4. Suitable anticorrosion material like conveyor belt system and outside plant system, etc.

-. CONTACT CAPACITY : 15A 125V/250V AC. 15A 14V DC.

-. PROTECTION : IP65

-. NUMBER OF CONTACTS : SPDT x 2EA

-. REQUIRED FORCE OF PULL CORD : 10 ¡¾1Kg

-. TYPE : MANUAL RETURN

-. CABLE ENTRY : PF 3/4" x 2EA WITH PLUG

-. WEIGHT:2.7KG

-. COLOR : HAMMERTION FE411
