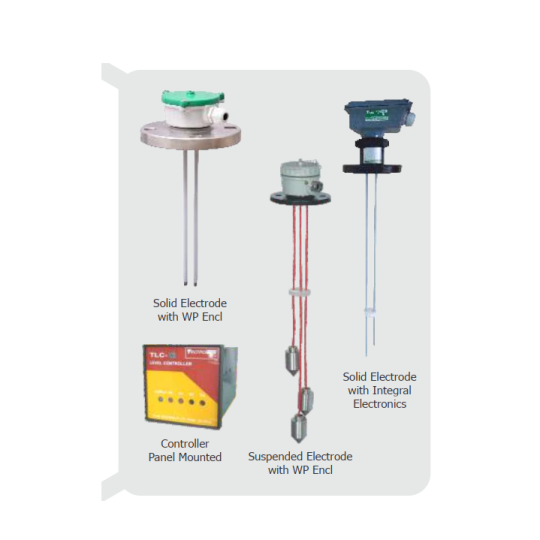

“Techtrol” Conductivity Type Liquid Level Switch

MODEL NO. : CNS – JS2SSP4 X TLC-NP3N

Enclosure : Cast Al, Weather-proof IP - 66 x PG 11

Process Connection – Material : SS316

Process Connection : 50 NB, ANSI 150# Flange (for 3 Levels)

Probe Type : Solid

Electrode MOC x Insulation : SS316 x PVC

No. of Electrodes : Four (3 levels)

Level Controller (TLC)

Product Series : CNS

Level Controller Version x Protection : ABS Panel Mtd.

No. of Set Points : Three x SPDT

Relay Latching : No

Supply Voltage : 90-270 VAC

Relay Contact Rating : 5 A, 230 VAC / 24 VDC (1C/O)

Installation : Top

Max. Amb. Temperature : 80º C

Max. Temperature : 70°C

Test Pressure : 5 kg / cm2 at amb temp.
