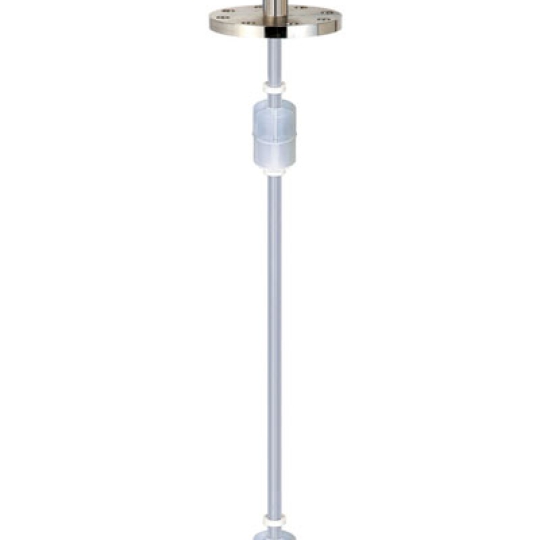

HR-30S Series is a Float Type Level Switch which is basically operated with the usage of reed switch and magnet. It can be applied to various storage tanks as well as highly corrosive liquids, and can be widely used in general industries with high reliability and long life cycle.

HR-30T-1F ; HR-30T-2F ; HR-30T-3F ; HR-30T-4F

BASIC DESCRIPTION

Installation : Top, Flange

Ambient Temp. : -20~+60℃

Fluid Temp. : Max. 80℃

Operating Pressure : Up to 0.5~3kg/cm2

S/W Type : Reed

Enclosure : Weather-Proof,IP65

Applications : Acid

Length(L) : 1,000mm

Contact Form : SPST,SPDT

APPLICATION:

● General liquids

● Wastewater and Sewage Plants

● Drinking Water Plants

● Petrol Tanks

● Acid, Corrosion Petrolchemical Industries

● Other liquid for level control
