CB-39 Series Tilt Switch

Tilt Switch Probes are electro-mechanical tilt sensors designed for sensing bulk materials presence or absence at the location of installation. Typical applications include high and low level detection and detection of plugged conditions in chutes. Also used for detecting the conditions of bulk material on conveyor belts.

KBT Tilt Switch are made from two materials for different applications: The SS series with stainless steel body and the CB series which are made metal cast to meet heavy working conditions. Depending on the applications, can be supplied with a dedicated control unit or can be directly integrated in existing control system.

KBT Tilt Switches have two different output options.

- Standard NC tilt switches which can be used as standalone or be paired with our control units,
can detect tilted and vertical positions.
- Electronic output switches can only be used by pairing with a control unit and have the ability to detect status for tilted, vertical, fault and short circuit status. With the added advantage of having a fault relay, you can detect problems earlier with electronic models and prevent loss and downtime.

Ask us about the compability of KBT Tilt Switches with your existing control units.

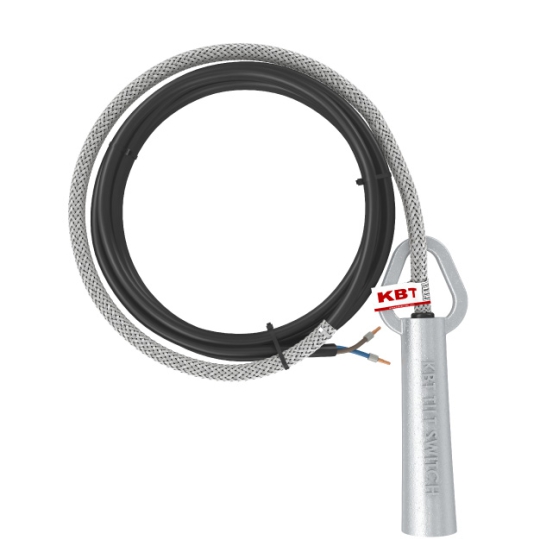

CB-39 Series - Heavy Duty Cast Iron Probe
Model    Tilt Angle    Mercury    Non-Mercury    Output
Công tắc nghiêng  KBT CB-39    35°    x         NC when vertical. Opens at angle.
Công tắc nghiêng  KBT CB-39A    20°    x         NC when vertical. Opens at angle.
Công tắc nghiêng  KBT CB-39NM    20°         x    NC when vertical. Opens at angle.
Công tắc nghiêng  KBT CB-39E    35°    x         Electronic. Must be used with Control Units.
Công tắc nghiêng  KBT CB-39AE    20°    x         Electronic. Must be used with Control Units.
Công tắc nghiêng  KBT CB-39NME    20°         x    Electronic. Must be used with Control Units.
