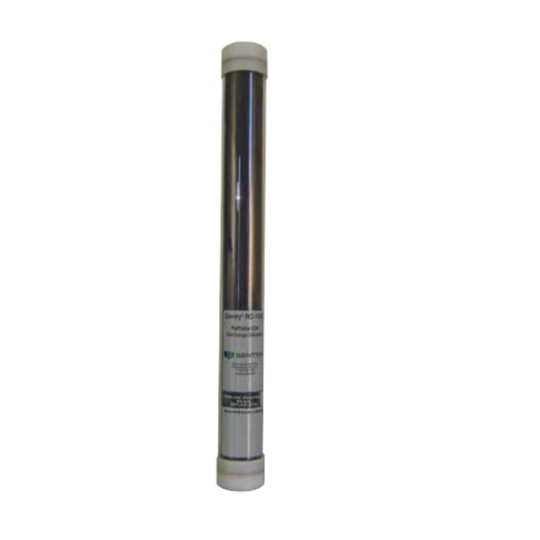

Cột trao đổi ion SENTRY RC-100 P/N: 7-00816B RC-200 P/N: 7-04037A RC-400 P/N: 7-04037B RESIN COLUMN Cation Exchange Resin Columns
The Sentry® RC-100 refillable ion exchange resin column make resin replacement easy and economical, minimizing channeling and achieving a higher resin efficiency than competitive columns with inefficient column diameters.
MODELS
RC-100
RC-200
RC-400
BENEFITS
The RC-100 is specially designed to minimize the column’s dead volume, assuring highly representative sampling. After a chemical upset, the RC-100 can produce a
representative sample within four minutes (at a flow rate of 200 cc/min) while others can take as long as 16 minutes.
In addition to reducing dead volume, the RC-100 refillable ion exchange column’s design also produces better flow distribution. Poor flow distribution and velocity can
skew cation conductivity results by up to 0.1 uS/cm.
FEATURES
Refillable, clear plastic column makes resin replacement economical and easy
Provides optimum fluid velocity with increased resin efficiency
Designed especially for flow rates common to water chemistry analyzers
Minimizes lag time required to detectchemical upset
No PVC used; wetted materials will not leach chlorides or plasticizers
End fittings are 1/8-inch quickdisconnects
-
7-00816B RC-100
-
Liên hệ
-
2318
- Thông tin sản phẩm
- Bình luận
SPECIFICATIONS
operating temperature 180°F (82°C) maximum
operating pressure 100 psig at 100°F (7 barg at 38°C); 60 psig at 180°F (4 barg at 82°C)
cation capacity 1000 grains as CaCO3
resin volume 0.020 ft3 (565 cc)
flow 200 cc/min recommended; 500 cc/min maximum
resin cation resin with color-indicating dye
weight column + resin: 2.4 lb (1.1 kg)
wetted materials polycarbonate, polypropylene, acetal
PART NUMBERS
RC-100 resin column with initial change of resin, mounting brackets, and two sets of quick disconnects 7-00816B
cation resin refill bag 2-03972A
corrosion-proof quick disconnect mounting bracket 4--04869A
porous disk 2-03892A
O-ring seal 4-04820C
acetal barbed quick disconnects (includes two each male and female coupling) 6-02503B
SPECIFICATIONS
operating temperature 180°F (82°C) maximum
operating pressure 100 psig at 100°F (7 barg at 38°C); 60 psig at 180°F (4 barg at 82°C)
flow 200 cc/min recommended; 500 cc/min maximum
wetted materials polycarbonate, polypropylene, acetal
resin cation resin with color-indicating dye
resin volume RC-200: 0.040 ft3
(1130 cc) RC-400: 0.080 ft3
(2260 cc)
cation capacity RC-200: 1600 grains as CaCO3
RC-400: 3200 grains as CaCO3
weight column + resin: RC-200: 4.25 lb (2 kg) RC-400: 6.5 lb (3 kg)
PART NUMBERS
RC-200 RC-400
resin column with initial change of resin, mounting brackets, and two sets of quick disconnects 7-04037A 7-04037B
cation resin refill bag (0.022 ft3) 2-03972A(2 required) 2-03972A(4 required)
corrosion-proof quick disconnect mounting bracket 4-05263A 4-05263A
standard cap 2-07030C 2-07030C
kit (includes two each O-rings and porous disks) 6-02503D 6-02503D
