40/40C-I-642AFY7

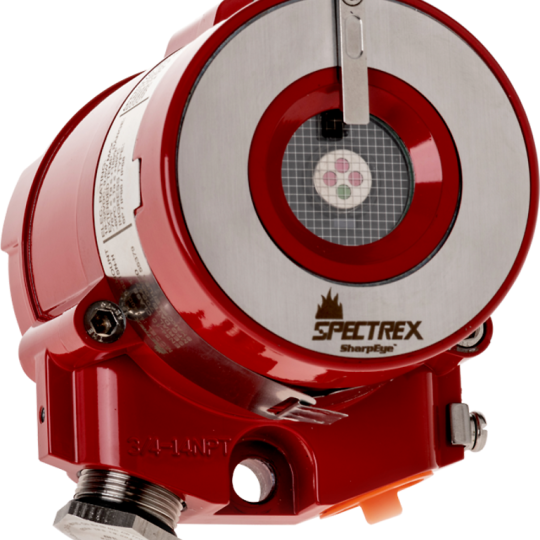

40/40C-I - IR3 Flame Detector withMounting

(Đầu dò lửa chống nổ 40/40C-I bao gồm chân đế)

40/40C-I Multi-Spectrum Quad-Sense Flame Detector - IR3 1 1pc

- Four Infrared Bands: 4 μm, 4.4 μm, 4.5 μm,5 μm

- 24 VDC Nominal (18-32 VDC)

- Heavy Duty Copper Free Aluminum,Polyurethane Paint

- IP66 and IP68 per EN60529

- FM Approval Class I Division 1, Groups B,C, and D, T4

- Reliability: IEC61508 - SIL3 Compatible

- Output: Fault/Alarm Relays, 0-20 mA, RS-485, HART, Analog Voltage 5V

- Detection Range 65m For 0.1 m² n-HeptaneFire Pan

- Response Time: Typically < 5 Seconds

- Field of View: Horizontal - 100°, Vertical -95°

- Operating: -40°C to +75°C

- Non-condensing Relative Humidity Up To100%

- Cable Entry: 3/4 Inch NPT

Accessories

- Enclosure/Ex-approval: Aluminum | FM,FMC, CSA US/C

- Protective Cover: ABS Plastic 1 pc

- Wiring: 12 - 22AWG (2.5mm 2 - 0.3mm 2)

- Tilt Mounting: 1 pc
