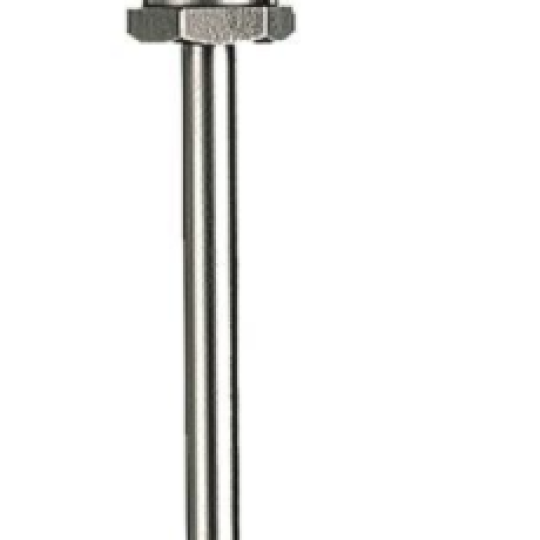

RTD Temperature Probe for Devices and Plants Tested/

Inspected According to DIN EN 14597 DIN EN 14597

• For heat transmission plants according to DIN 4754

• For temperatures of up to 700 °C

• As single, double, or triple RTD temperature probes

• For water, oil, or air

• For tested control and limitation devices

The RTD temperature probes specified in this data sheet can be used in connection with temperature control and limitation devices tested/inspected according to DIN EN 14597 (DIN 3440)

in heat transmission plants according to DIN 4754.

RTD temperature probes are the preferred choice for measuring temperatures in liquids and

gases. Application areas include air conditioning and refrigeration technology as well as heating, furnace/kiln, and apparatus engineering.

Form B terminal heads are suitable for ambient temperatures up to 100 °C.

Protection tubes made of various materials protect the measuring insert against chemical influences and mechanical damage. The appropriate protection tube material is selected according

to the conditions on site.

A Pt100 temperature sensor according to DIN EN 60751, class B is used in the measuring insert

in a 2-wire-circuit as standard
