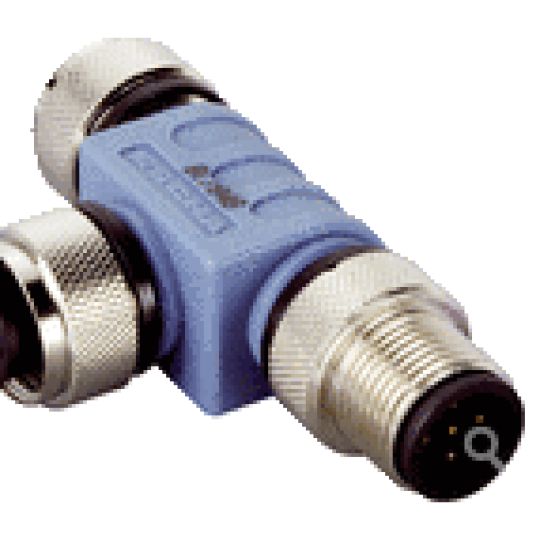

Type: DSC-1205T000025KM0 ; Part no.: 6030664

Technical specifications

Accessory group Distributors

Accessory family T-junctions

Connection type head A Female connector, M12, 5-pin, A-coded

Connection type head B Male connector, M12, 5-pin, A-coded

Connector material TPU

Connector color Black

Locking nut material CuZn, nickel-plated brass

Reference voltage

≤ 60 V

Current loading 4 A

Note 5-pin

Enclosure rating IP67 1)

Description T-piece for simultaneous connection to sender and receiver, splits the cable from the control cabinet to the sender and receiver
