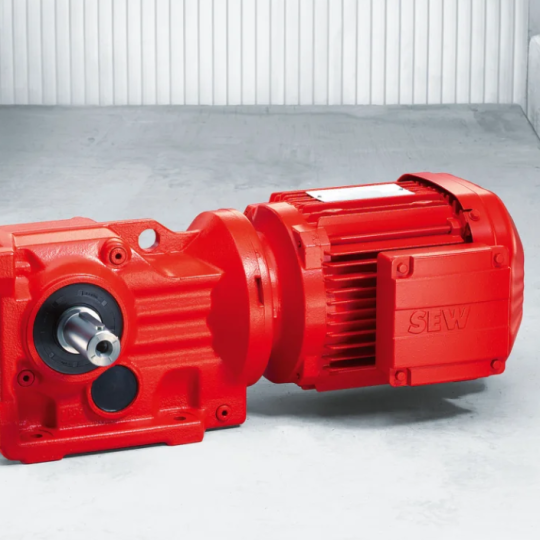

Động cơ giảm tốc SEW Typ: KF97 DRN160L4/TF Helical bevel geared motor K..DRN.. (IE3) This product is a special design as same as s/n.: 01.7360937206.0001.16

Typ: KF97 DRN160L4/TF
Helical bevel geared motor K..DRN.. (IE3)
This product is a special design
as same as s/n.: 01.7360937206.0001.16
Product data
Speed [r/min] : 1474 / 78
Total ratio [i] : 18,96 / infinite
Ma max [Nm] : 4.300
Output torque [Nm] : 1840
Service factor SEW-FB : 2,30
Mounting position : M6B
Term.box.pos.[°] / cable entry : 90 (B) / position 2
Lubricant / -volume [l] : CLP PG 220 Synth.Oil / 16,50
Corrosion protection : Yes
Special measure : Contour recesses injected with rubber.
Surface protection : OS4 to technical data sheet 01802__94
Paint coat : Top coat RAL3020 (traffic red)
Output shaft end : 70x140 mm lg.
Design : Flange-mounted version
Flange : 450mm
Output oil seal : 2 oil seals FKM
Special design – general : Oil drain valve, variant "90°" for metrical tapped hole,
Techn. data 07 082_08. SEW code 212
Technical data sheet SD other : 19005_06
Number of oil sight glasses : 1
Position of oil sight glass 1 : B41
Breather valve : Nirosta type
Screw plug bore dimens. sheet : 331400109
Documentation no. A : 21932778
Parts list : 332621395
Output oil seal material : FKM
Motor power [kW] : 15
Motor frequency [Hz] : 50
Cyclic duration factor S1-S10 : S1
Motor voltage [V] / conn. type : 400/690 delta/star
Nominal current [A] : 29,00 / 16,70
cos phi :0,80
Wiring diagram : R13T / 681510406
Thermal cl.[°C]/Enclosure[IP] : 155(F) / 56
International efficiency class : IE3
Efficiency at 50/75/100% Pn [%] : 91,9 / 92,5 / 92,1
CE mark : Yes
Motor protection : TF = PTC Temperature sensor
Terminal box : Terminal box lower part made of aluminum with tapped hole 2xM40,
2xM16
Documentation no. A : 21927170
Nameplate : English
Nameplate position : 0°
Opera.instr. A lang./quantity : German / 0
Parts list/language/quantity : German / 0
Commodity code : 85015230
Weight : 316.00 kg
